S-SCLCR/L PORTAHERRAMIENTAS SCLCR/L
Consulta el catálogo actualizado:
Descargar

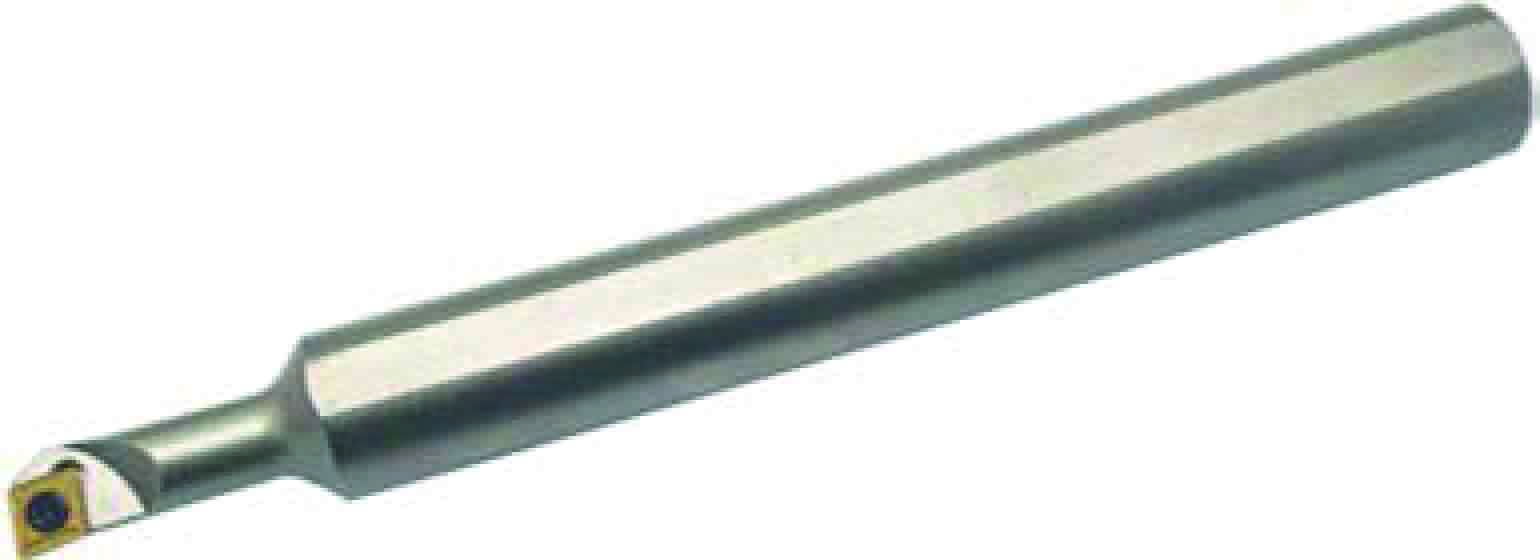

PORTAHERRAMIENTAS SCLCR/L
Disponibilidad: En Stock
REFERENCIAS DEL PRODUCTO:

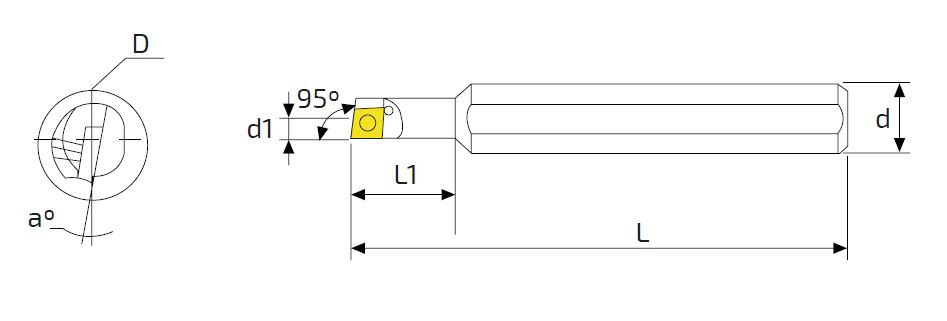

| Referencia | f | d1 | l1 | l | d | H | a | D | Plaquita |
|---|---|---|---|---|---|---|---|---|---|
| S0612K-SCLCR/L04 | 3.5 | 6 | 18 | 125 | 12 | 11 | 10 | 12 | CC..0401 |
| S0812K-SCLCR/L06 | 5 | 8 | 24 | 125 | 12 | 11 | 10 | 12 | CC..0602 |
| S0616M-SCLCR/L04 | 3.5 | 6 | 18 | 150 | 16 | 11 | 10 | 16 | CC..0401 |
| S0816M-SCLCR/L06 | 5 | 8 | 24 | 150 | 16 | 15 | 10 | 16 | CC..0602 |
| S1016M-SCLCR/L06 | 6 | 10 | 30 | 150 | 16 | 15 | 10 | 16 | CC..0602 |
| S1216M-SCLCR/L06 | 7 | 12 | 36 | 150 | 16 | 15 | 10 | 16 | CC..0602 |
| S1020M-SCLCR/L06 | 6 | 10 | 30 | 150 | 20 | 18 | 8 | 20 | CC..0602 |
| S1220M-SCLCR/L06 | 7 | 12 | 36 | 150 | 20 | 18 | 8 | 20 | CC..0602 |
| S1220M-SCLCR/L09 | 7.5 | 12 | 36 | 150 | 20 | 18 | 8 | 20 | CC..09T3 |
