F-823 FRESA METAL DURO PUNTA ESFÉRICA LARGA 2 LABIOS HSC/HHC < 65HRC (0,2m)

FRESA METAL DURO PUNTA ESFÉRICA LARGA 2 LABIOS HSC/HHC < 65HRC (0,2m)

Disponibilidad: En Stock

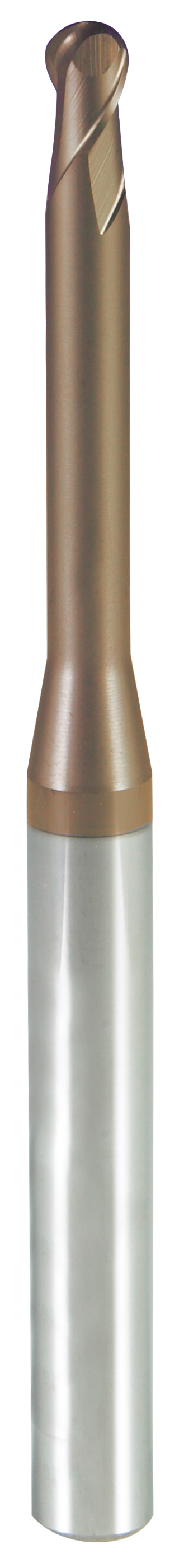

  • Fresa de bola metal duro de cuello largo rebajado de 2 labios con recubrimiento TiSiN. Ángulo espiral de 30º. La herramienta, material y el recubrimiento están especialmente diseñados para el mecanizado HSC (High Speed Cutting) + HHC (High Hard Cutting) < 65 HRC. También podemos utilizar esta herramienta para aceros y materiales no férricos. El diámetro posterior al corte es menor que el diámetro de punta para evitar el desvío de la herramienta. Herramienta de bola especial para contornos 3D.
...

REFERENCIAS DEL PRODUCTO:

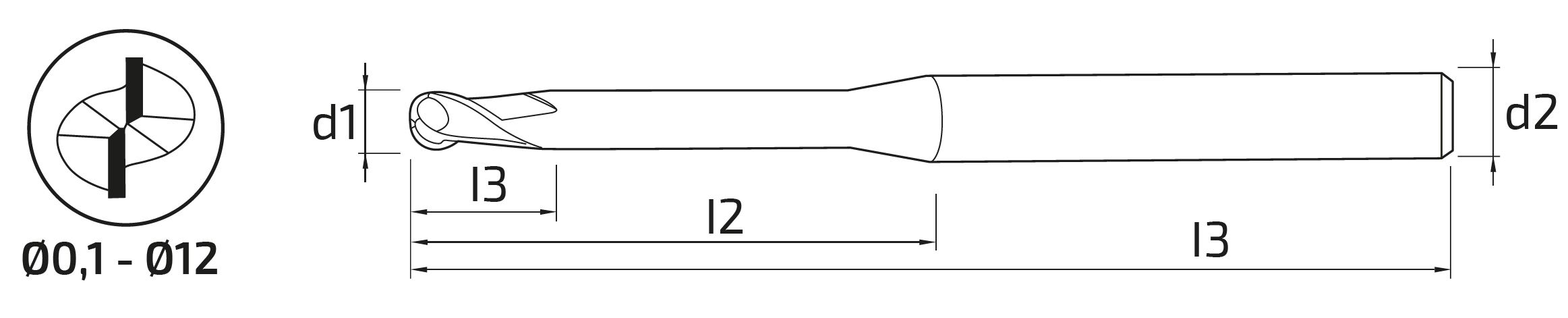

Referencia d1 d2 l1 l2 l3 z Precio
823001200 0.1 4 40 - 0.3 2 67.80€
823001210 0.1 4 40 - 0.5 2 67.80€
823002210 0.2 4 40 0.5 0.2 2 42.85€
823002220 0.2 4 40 1 0.2 2 42.85€
823002230 0.2 4 40 1.5 0.2 2 42.85€
823002200 0.2 4 40 2 0.2 2 42.85€
823003210 0.3 4 40 1 0.3 2 40.30€
823003220 0.3 4 40 1.5 0.3 2 40.30€
823003230 0.3 4 40 2 0.3 2 40.30€
823003240 0.3 4 40 3 0.3 2 40.30€
823003200 0.3 4 40 4 0.3 2 47.15€
823003250 0.3 4 40 5 0.3 2 47.15€
823004210 0.4 4 40 1 0.4 2 38.75€
823004220 0.4 4 40 2 0.4 2 38.75€
823004230 0.4 4 40 3 0.4 2 38.75€
823004200 0.4 4 40 4 0.4 2 38.75€
823004240 0.4 4 40 5 0.4 2 38.75€
823004250 0.4 4 40 6 0.4 2 38.75€
823004260 0.4 4 40 8 0.4 2 38.75€
823004270 0.4 4 40 10 0.4 2 45.15€
823005220 0.5 4 45 1 0.5 2 35.40€
823005230 0.5 4 45 2 0.5 2 35.40€
823005240 0.5 4 45 3 0.5 2 35.40€
823005200 0.5 4 45 4 0.5 2 35.40€
823005250 0.5 4 45 5 0.5 2 36.40€
823005260 0.5 4 45 6 0.5 2 36.40€
823005210 0.5 4 45 8 0.5 2 36.40€
823005270 0.5 4 45 10 0.5 2 36.40€
823005280 0.5 4 45 12 0.5 2 43.10€
823005290 0.5 4 45 14 0.5 2 43.10€
823006260 0.6 4 45 1 0.6 2 33.20€
823006220 0.6 4 45 2 0.6 2 33.20€
823006230 0.6 4 45 3 0.6 2 33.20€
823006200 0.6 4 45 4 0.6 2 33.20€
823006240 0.6 4 45 5 0.6 2 33.20€
823006250 0.6 4 45 6 0.6 2 33.20€
823006210 0.6 4 45 8 0.6 2 34.25€
823006270 0.6 4 45 10 0.6 2 34.25€
823006280 0.6 4 45 12 0.6 2 34.25€
823006290 0.6 4 45 14 0.6 2 40.75€
823006300 0.6 4 45 16 0.6 2 40.75€
823007210 0.7 4 45 2 0.7 2 34.25€
823007220 0.7 4 45 4 0.7 2 34.25€
823007200 0.7 4 45 8 0.7 2 34.25€
823007230 0.7 4 45 10 0.7 2 40.75€
823007240 0.7 4 45 12 0.7 2 40.75€
823008240 0.8 4 45 2 0.8 2 31.00€
823008250 0.8 4 45 4 0.8 2 31.00€
823008200 0.8 4 45 6 0.8 2 31.00€
823008210 0.8 4 45 8 0.8 2 31.00€
823008260 0.8 4 45 10 0.8 2 31.00€
823008220 0.8 4 45 12 0.8 2 31.00€
823008270 0.8 4 45 14 0.8 2 37.70€
823008230 0.8 4 45 16 0.8 2 37.70€
823009200 0.9 4 45 4 0.9 2 31.00€
823010260 1 4 50 2 1 2 27.55€
823010270 1 6 50 2 1 2 32.60€
823010280 1 4 50 3 1 2 27.55€
823010290 1 6 50 3 1 2 32.60€
823010300 1 4 50 4 1 2 27.55€
823010310 1 6 50 4 1 2 32.60€
823010320 1 4 50 5 1 2 27.55€
823010330 1 6 50 5 1 2 32.60€
823010200 1 4 50 6 1 2 27.55€
823010340 1 6 50 6 1 2 32.60€
823010210 1 4 50 8 1 2 27.55€
823010350 1 6 50 8 1 2 32.60€
823010220 1 4 50 10 1 2 28.75€
823010360 1 6 50 10 1 2 32.60€
823010230 1 4 50 12 1 2 28.75€
823010370 1 6 50 12 1 2 32.60€
823010380 1 4 50 14 1 2 28.75€
823010390 1 6 50 14 1 2 32.60€
823010240 1 4 50 16 1 2 28.75€
823010400 1 6 60 16 1 2 34.25€
823010410 1 4 50 18 1 2 28.75€
823010420 1 6 60 18 1 2 34.25€
823010250 1 4 50 20 1 2 28.75€
823010430 1 6 60 20 1 2 34.25€
823010440 1 4 60 22 1 2 31.70€
823010450 1 6 65 22 1 2 36.40€
823010460 1 4 60 25 1 2 37.95€
823012240 1.2 4 45 4 1.2 2 28.75€
823012250 1.2 6 50 4 1.2 2 32.60€
823012260 1.2 4 45 6 1.2 2 28.75€
823012270 1.2 6 50 6 1.2 2 32.60€
823012200 1.2 4 45 8 1.2 2 28.75€
823012280 1.2 6 50 8 1.2 2 32.60€
823012290 1.2 4 50 10 1.2 2 28.75€
823012300 1.2 6 50 10 1.2 2 32.60€
823012210 1.2 4 50 12 1.2 2 28.75€
823012310 1.2 6 50 12 1.2 2 32.60€
823012220 1.2 4 50 16 1.2 2 28.75€
823012320 1.2 6 60 16 1.2 2 34.25€
823012230 1.2 4 50 20 1.2 2 28.75€
823012330 1.2 6 60 20 1.2 2 34.25€
823012340 1.2 4 60 24 1.2 2 31.70€
823012350 1.2 6 65 24 1.2 2 36.40€
823014210 1.4 4 45 6 1.4 2 28.75€
823014220 1.4 4 45 8 1.4 2 28.75€
823014200 1.4 4 50 12 1.4 2 28.75€
823014230 1.4 4 50 16 1.4 2 28.75€
823015260 1.5 4 45 3 1.5 2 27.55€
823015270 1.5 6 50 3 1.5 2 32.60€
823015280 1.5 4 45 4 1.5 2 27.55€
823015290 1.5 6 50 4 1.5 2 32.60€
823015300 1.5 4 45 6 1.5 2 27.55€
823015310 1.5 6 50 6 1.5 2 32.60€
823015200 1.5 4 45 8 1.5 2 27.55€
823015320 1.5 6 50 8 1.5 2 32.60€
823015330 1.5 4 50 10 1.5 2 28.75€
823015340 1.5 6 50 10 1.5 2 32.60€
823015210 1.5 4 50 12 1.5 2 28.75€
823015350 1.5 6 50 12 1.5 2 32.60€
823015360 1.5 4 50 14 1.5 2 28.75€
823015370 1.5 6 50 14 1.5 2 32.60€
823015220 1.5 4 50 16 1.5 2 28.75€
823015380 1.5 6 60 16 1.5 2 34.25€
823015390 1.5 4 50 18 1.5 2 28.75€
823015400 1.5 6 60 18 1.5 2 34.25€
823015230 1.5 4 50 20 1.5 2 28.75€
823015410 1.5 6 60 20 1.5 2 34.25€
823015420 1.5 4 60 22 1.5 2 31.70€
823015430 1.5 6 65 22 1.5 2 36.40€
823015240 1.5 4 60 25 1.5 2 31.70€
823015440 1.5 6 65 25 1.5 2 36.40€
823015250 1.5 4 70 30 1.5 2 34.60€
823015450 1.5 6 70 30 1.5 2 41.55€
823015460 1.5 4 70 35 1.5 2 41.05€
823016210 1.6 4 45 6 1.6 2 33.20€
823016220 1.6 4 45 8 1.6 2 33.20€
823016230 1.6 4 50 12 1.6 2 33.20€
823016200 1.6 4 50 16 1.6 2 33.20€
823016240 1.6 4 50 20 1.6 2 33.20€
823018200 1.8 4 45 6 1.8 2 33.20€
823018210 1.8 4 45 8 1.8 2 33.20€
823018220 1.8 4 50 12 1.8 2 33.20€
823018230 1.8 4 50 16 1.8 2 33.20€
823018240 1.8 4 50 20 1.8 2 33.20€
823020270 2 4 45 4 2 2 27.55€
823020280 2 6 50 4 2 2 32.60€
823020290 2 4 45 6 2 2 27.55€
823020300 2 6 50 6 2 2 32.60€
823020200 2 4 45 8 2 2 27.55€
823020310 2 6 50 8 2 2 32.60€
823020320 2 4 50 10 2 2 27.55€
823020330 2 6 50 10 2 2 32.60€
823020210 2 4 50 12 2 2 27.55€
823020340 2 6 50 12 2 2 32.60€
823020350 2 4 50 14 2 2 27.55€
823020360 2 6 50 14 2 2 32.60€
823020220 2 4 50 16 2 2 27.55€
823020370 2 6 60 16 2 2 34.25€
823020380 2 4 50 18 2 2 27.55€
823020390 2 6 60 18 2 2 34.25€
823020230 2 4 50 20 2 2 29.65€
823020400 2 6 60 20 2 2 34.25€
823020410 2 4 60 22 2 2 29.65€
823020420 2 6 65 22 2 2 36.40€
823020240 2 4 60 25 2 2 29.65€
823020430 2 6 65 25 2 2 36.40€
823020250 2 4 70 30 2 2 34.75€
823020440 2 6 70 30 2 2 41.55€
823020450 2 4 70 35 2
