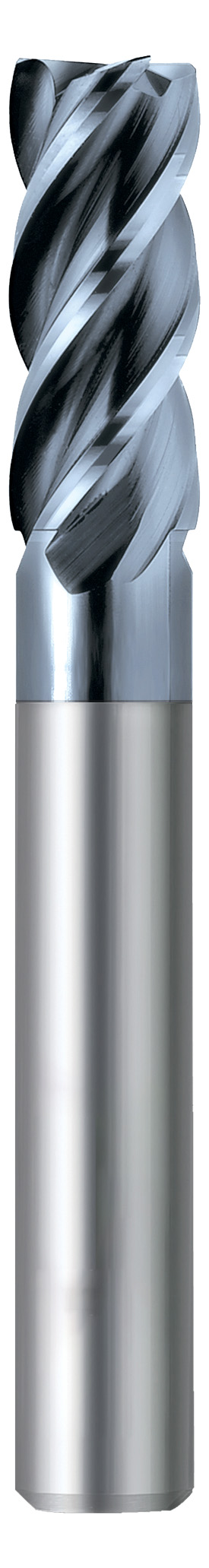

FRESA DE 4 LABIOS CON HÉLICE VARIABLE DE 38º/41º PARA INOXIDABLE
REFERENCIAS DEL PRODUCTO:

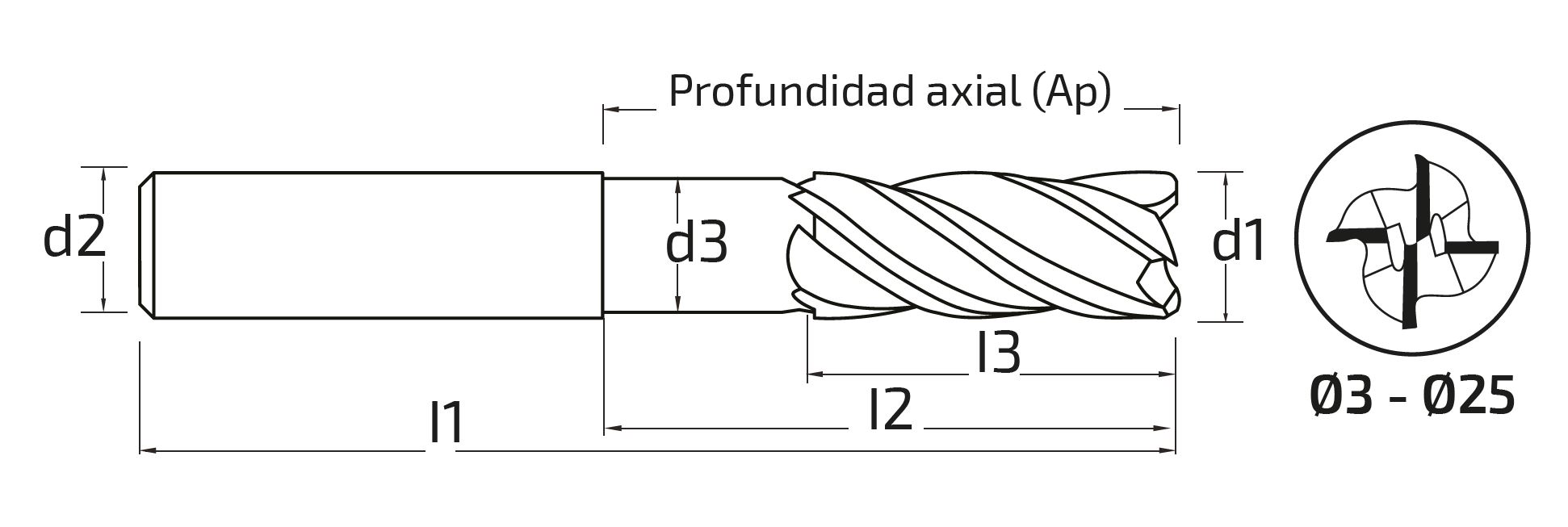

Referencia | ap | d1 | d2 | d3 | l1 | l2 | l3 |
---|---|---|---|---|---|---|---|
453030200 | 15 mm | 3 | 6 | 2.8 | 57 | 15 | 8 |
453040200 | 17 mm | 4 | 6 | 3.8 | 57 | 17 | 11 |
453050200 | 19 mm | 5 | 6 | 4.8 | 57 | 19 | 13 |
453060200 | 21 mm | 6 | 6 | 5.8 | 57 | 21 | 13 |
453080200 | 27 mm | 8 | 8 | 7.8 | 63 | 27 | 19 |
453100200 | 32 mm | 10 | 10 | 9.8 | 72 | 32 | 22 |
453120200 | 38 mm | 12 | 12 | 11.8 | 83 | 38 | 26 |
453140200 | 38 mm | 14 | 14 | 13.8 | 83 | 38 | 26 |
453160200 | 44 mm | 16 | 16 | 15.8 | 92 | 44 | 32 |
453180200 | 44 mm | 18 | 18 | 17.8 | 92 | 44 | 32 |
453200200 | 54 mm | 20 | 20 | 19.8 | 104 | 54 | 38 |
453250200 | 65 mm | 25 | 25 | 24.8 | 121 | 65 | 45 |

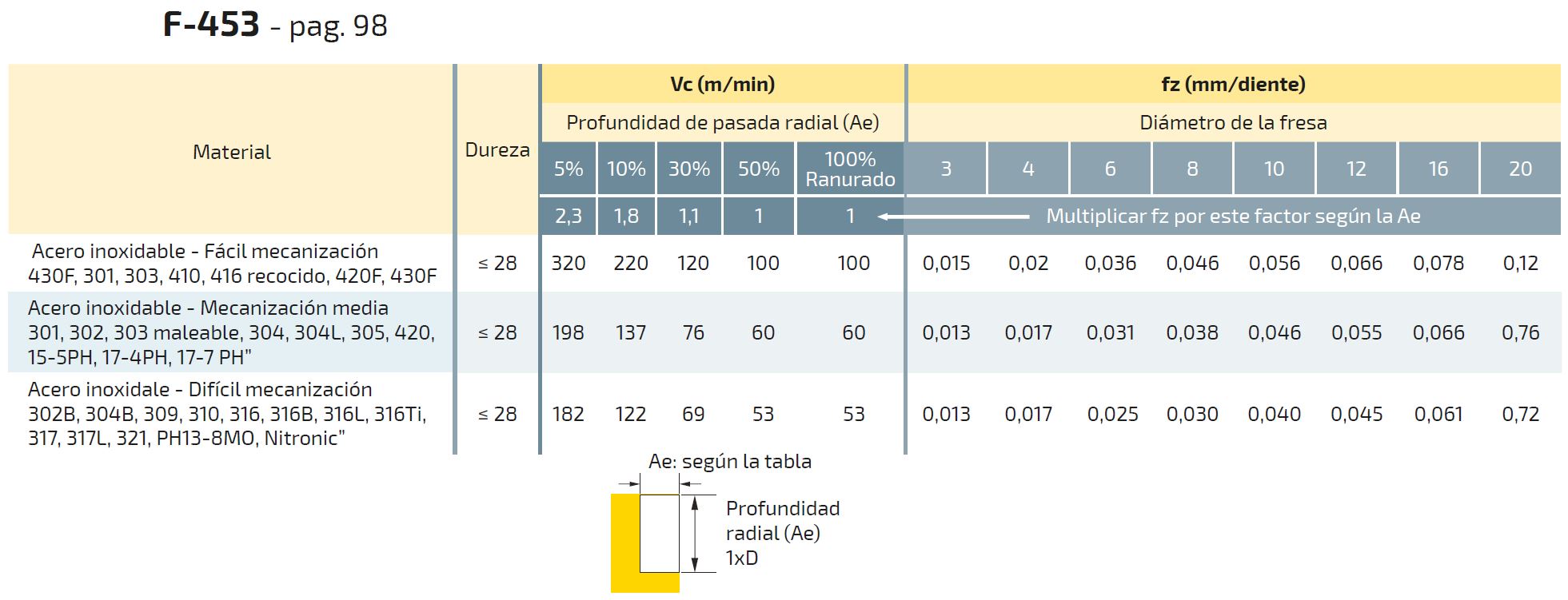

CONDICIONES DE CORTE:
