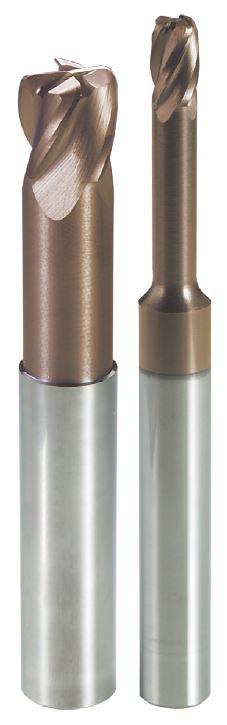

F-412 FRESA METAL DURO TÓRICA 4 LABIOS HSC-HHC < 65 HRC
Consulta el catálogo actualizado:
Descargar
FRESA METAL DURO TÓRICA 4 LABIOS HSC-HHC < 65 HRC
Disponibilidad: En Stock
- Fresa metal duro de 4 labios tórica y recubrimiento TiSiN. 30º de hélice. La herramienta, material y el recubrimiento están especialmente diseñados para el mecanizado a alta velocidad (HSC) y materiales duros (HHC). Para máquinas CNC con 3 y 5 ejes. También podemos trabajar en seco. Para aceros hasta 65 HRC. También válida para materiales no férricos, materiales termo resistentes, aleaciones exóticas y fundiciones. Fresa especialmente diseñada para trabajos 3D.
REFERENCIAS DEL PRODUCTO:

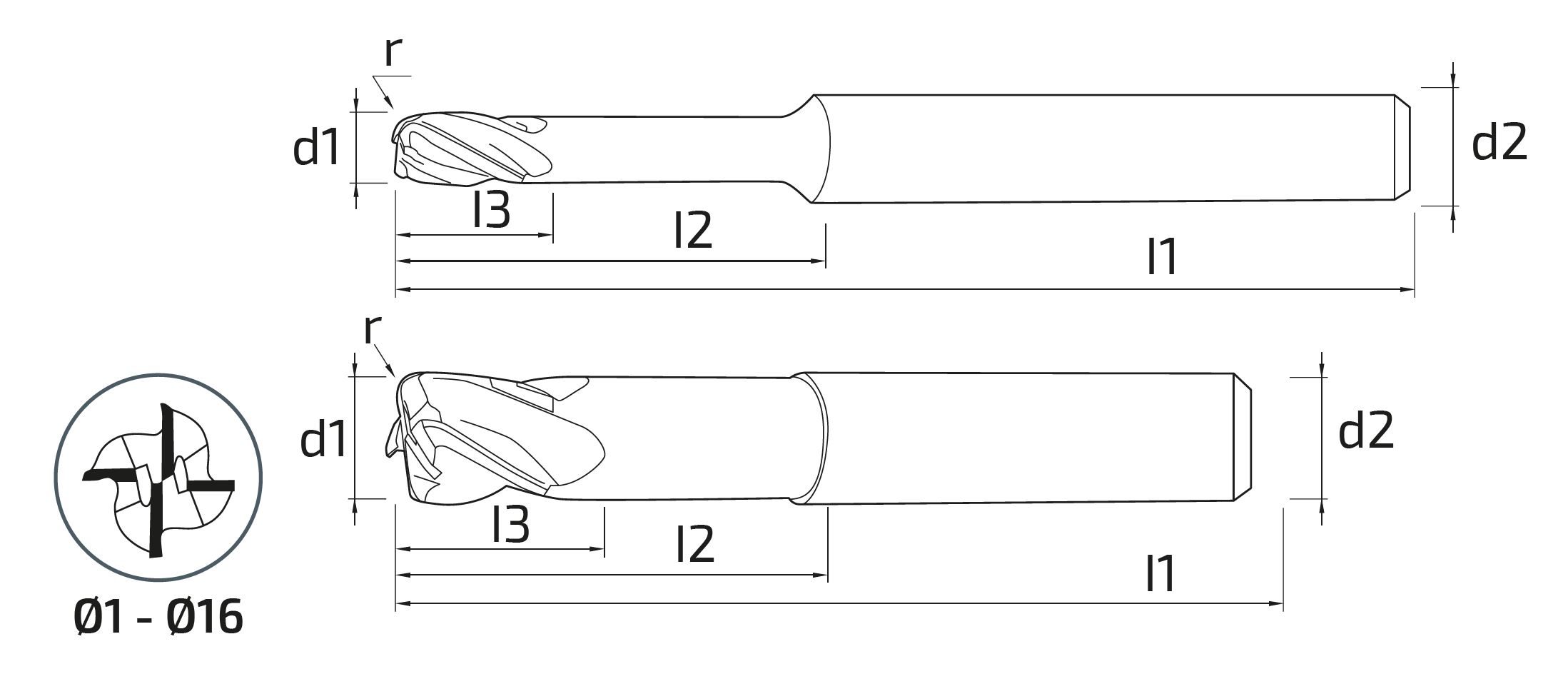

| Referencia | d1 | r | d2 | l1 | l2 | l3 | z |
|---|---|---|---|---|---|---|---|
| 412010200 | 1 | 0.2 | 4 | 50 | 10 | 1 | 4 |
| 412010210 | 1 | 0.2 | 4 | 50 | 20 | 1 | 4 |
| 412012200 | 1.2 | 0.2 | 4 | 50 | 10 | 1.2 | 4 |
| 412012210 | 1.2 | 0.2 | 4 | 50 | 20 | 1.2 | 4 |
| 412015200 | 1.5 | 0.2 | 4 | 50 | 10 | 1.5 | 4 |
| 412015210 | 1.5 | 0.2 | 4 | 50 | 20 | 1.5 | 4 |
| 412020200 | 2 | 0.2 | 4 | 50 | 10 | 2 | 4 |
| 412020210 | 2 | 0.2 | 4 | 50 | 20 | 2 | 4 |
| 412025200 | 2.5 | 0.2 | 4 | 50 | 10 | 2.5 | 4 |
| 412025210 | 2.5 | 0.2 | 4 | 50 | 20 | 2.5 | 4 |
| 412030200 | 3 | 0.3 | 6 | 50 | 10 | 3 | 4 |
| 412030210 | 3 | 0.3 | 6 | 60 | 20 | 3 | 4 |
| 412030220 | 3 | 0.3 | 6 | 70 | 30 | 3 | 4 |
| 412030230 | 3 | 0.3 | 6 | 80 | 40 | 3 | 4 |
| 412040200 | 4 | 0.5 | 6 | 60 | 20 | 4 | 4 |
| 412040205 | 4 | 0.5 | 6 | 70 | 30 | 4 | 4 |
| 412040210 | 4 | 0.5 | 6 | 80 | 40 | 4 | 4 |
| 412040220 | 4 | 1 | 6 | 60 | 20 | 4 | 4 |
| 412040230 | 4 | 1 | 6 | 70 | 30 | 4 | 4 |
| 412040240 | 4 | 1 | 6 | 80 | 40 | 4 | 4 |
| 412050200 | 5 | 0.2 | 6 | 60 | 16 | 5 | 4 |
| 412050210 | 5 | 0.2 | 6 | 70 | 30 | 5 | 4 |
| 412050220 | 5 | 0.2 | 6 | 80 | 40 | 5 | 4 |
| 412050230 | 5 | 0.5 | 6 | 60 | 16 | 5 | 4 |
| 412050240 | 5 | 0.5 | 6 | 70 | 30 | 5 | 4 |
| 412050250 | 5 | 0.5 | 6 | 80 | 40 | 5 | 4 |
| 412060200 | 6 | 0.3 | 6 | 60 | 20 | 7 | 4 |
| 412060205 | 6 | 0.3 | 6 | 80 | 40 | 7 | 4 |
| 412060206 | 6 | 0.3 | 6 | 100 | 50 | 7 | 4 |
| 412060210 | 6 | 0.5 | 6 | 60 | 20 | 7 | 4 |
| 412060215 | 6 | 0.5 | 6 | 80 | 40 | 7 | 4 |
| 412060216 | 6 | 0.5 | 6 | 100 | 50 | 7 | 4 |
| 412060220 | 6 | 1 | 6 | 60 | 20 | 7 | 4 |
| 412060225 | 6 | 1 | 6 | 80 | 40 | 7 | 4 |
| 412060226 | 6 | 1 | 6 | 100 | 50 | 7 | 4 |
| 412060230 | 6 | 1.5 | 6 | 60 | 20 | 7 | 4 |
| 412060235 | 6 | 1.5 | 6 | 80 | 40 | 7 | 4 |
| 412060236 | 6 | 1.5 | 6 | 100 | 50 | 7 | 4 |
| 412060240 | 6 | 1.6 | 6 | 60 | 20 | 8 | 4 |
| 412060250 | 6 | 2 | 6 | 60 | 20 | 8 | 4 |
| 412080200 | 8 | 0.5 | 8 | 65 | 22 | 9 | 4 |
| 412080205 | 8 | 0.5 | 8 | 100 | 40 | 9 | 4 |
| 412080210 | 8 | 1 | 8 | 65 | 22 | 9 | 4 |
| 412080215 | 8 | 1 | 8 | 100 | 40 | 9 | 4 |
| 412080220 | 8 | 1.5 | 8 | 65 | 22 | 9 | 4 |
| 412080225 | 8 | 1.5 | 8 | 100 | 40 | 9 | 4 |
| 412080230 | 8 | 2 | 8 | 65 | 22 | 9 | 4 |
| 412100200 | 10 | 0.5 | 10 | 70 | 24 | 11 | 4 |
| 412100205 | 10 | 0.5 | 10 | 100 | 40 | 11 | 4 |
| 412100210 | 10 | 1 | 10 | 70 | 24 | 11 | 4 |
| 412100215 | 10 | 1 | 10 | 100 | 40 | 11 | 4 |
| 412100220 | 10 | 1.5 | 10 | 70 | 24 | 11 | 4 |
| 412100225 | 10 | 1.5 | 10 | 100 | 40 | 11 | 4 |
| 412100230 | 10 | 2 | 10 | 70 | 24 | 11 | 4 |
| 412100235 | 10 | 2.5 | 10 | 70 | 24 | 11 | 4 |
| 412120200 | 12 | 0.5 | 12 | 80 | 26 | 13 | 4 |
| 412120205 | 12 | 0.5 | 12 | 110 | 40 | 13 | 4 |
| 412120210 | 12 | 1 | 12 | 80 | 26 | 13 | 4 |
| 412120215 | 12 | 1 | 12 | 110 | 40 | 13 | 4 |
| 412120220 | 12 | 1.5 | 12 | 80 | 26 | 13 | 4 |
| 412120225 | 12 | 1.5 | 12 | 110 | 40 | 13 | 4 |
| 412120230 | 12 | 2 | 12 | 80 | 26 | 13 | 4 |
| 412120235 | 12 | 3 | 12 | 80 | 26 | 13 | 4 |
| 412160200 | 16 | 0.5 | 16 | 92 | 44 | 16 | 4 |
| 412160210 | 16 | 1 | 16 | 92 | 44 | 16 | 4 |
| 412160220 | 16 | 1.5 | 16 | 92 | 44 | 16 | 4 |
| 412160230 | 16 | 2 | 16 | 92 | 44 | 16 | 4 |
| 412160240 | 16 | 3 | 16 | 92 | 44 | 16 | 4 |

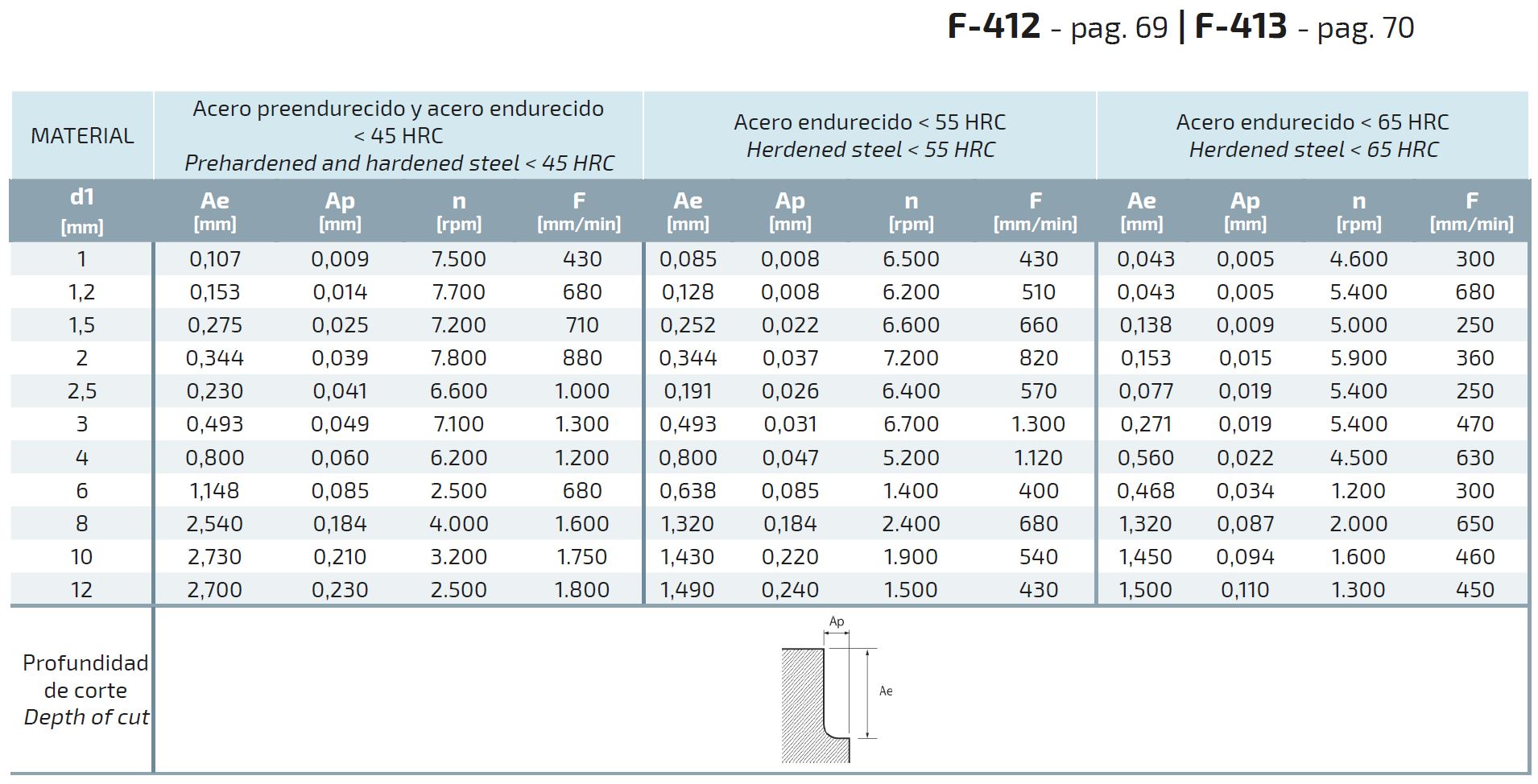

CONDICIONES DE CORTE:
