MANGO DE METAL DURO PARA PERFORACIÓN
REFERENCIAS DEL PRODUCTO:

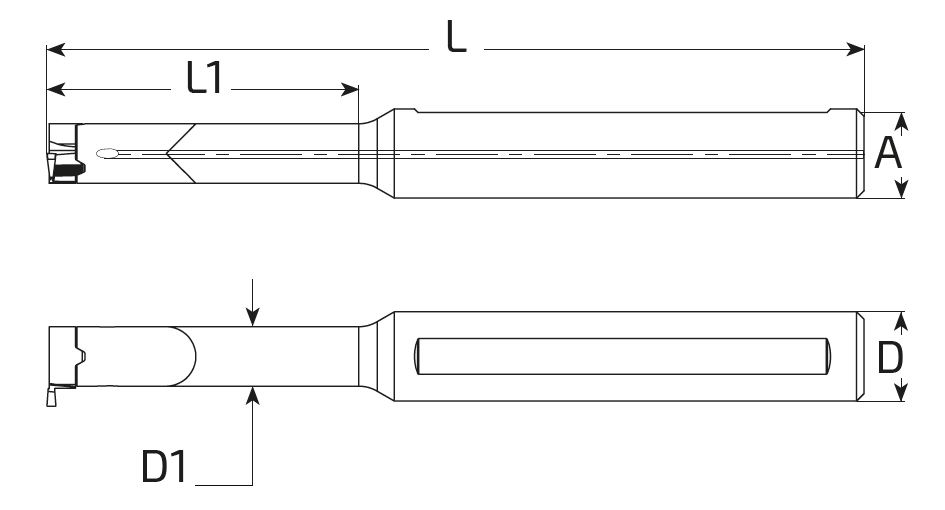

Referencia | d1 | l1 | l | A |
---|---|---|---|---|
CV08-1221 | 6 | 21 | 80.5 | 11.5 |
CV08-1230 | 6 | 30 | 90.5 | 11.5 |
CV08-1242 | 6 | 42 | 100.5 | 11.5 |
CV08-1250 | 6 | 50 | 115 | 11.5 |
CV11-1229 | 8 | 29 | 95 | 11.5 |
CV11-1242 | 8 | 42 | 110 | 11.5 |
CV11-1256 | 8 | 56 | 120 | 11.5 |
CV11-1264 | 8 | 64 | 130 | 11.5 |
CV16-1240 | 11 | 40 | 130 | 11 |
CV16-1256 | 11 | 56 | 130 | 11 |
CV16-1280 | 11 | 80 | 130 | 11 |
