B-820 BROCA METAL DURO 8XD CON REFRIGERACIÓN INTERNA
BROCA METAL DURO 8XD CON REFRIGERACIÓN INTERNA
Disponibilidad: En Stock
- Broca metal duro integral 8xD con recubrimiento TiAlN, con refrigeración interior y con corte a derecha. Ángulo de punta 135º, ángulo de espiral 30º. Geometría de corte especial para taladro directo sin punteado previo que a la vez garantiza una perfecta concentricidad. Afilado especial de los canales para disminuir el coeficiente de fricción, mejorando la extracción de viruta. Permite trabajar tanto en seco como con refrigeración externa.
REFERENCIAS DEL PRODUCTO:

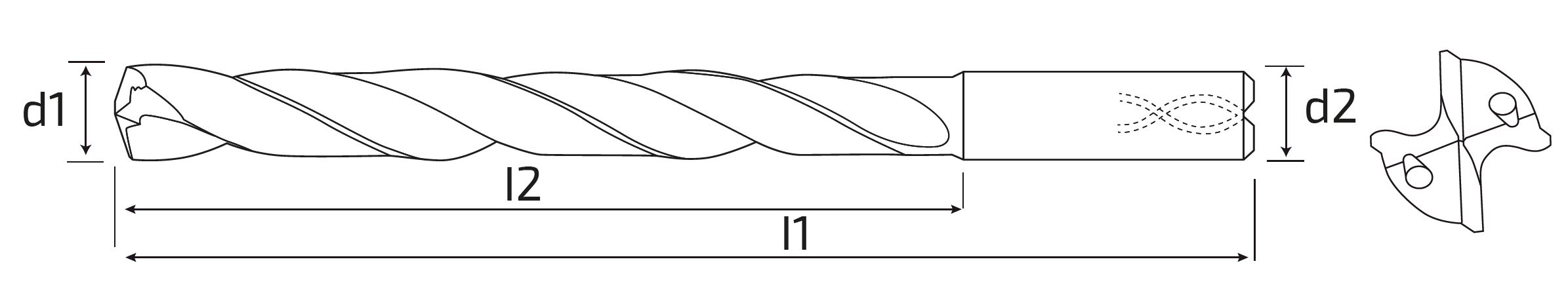

| Referencia | d1_m7 | d2h5 | l1 | l2 |
|---|---|---|---|---|
| B820022210 | 2.2 | 3 | 60 | 20.9 |
| B820022510 | 2.25 | 3 | 60 | 21.4 |
| B820023210 | 2.3 | 3 | 60 | 21.9 |
| B820023510 | 2.35 | 3 | 60 | 22.3 |
| B820024210 | 2.4 | 3 | 60 | 22.8 |
| B820024510 | 2.45 | 3 | 60 | 23.3 |
| B820025210 | 2.5 | 3 | 60 | 23.8 |
| B820025510 | 2.55 | 3 | 60 | 24.2 |
| B820026210 | 2.6 | 3 | 60 | 24.7 |
| B820026510 | 2.65 | 3 | 60 | 25.2 |
| B820027210 | 2.7 | 3 | 60 | 25.7 |
| B820027510 | 2.75 | 3 | 60 | 26.1 |
| B820028210 | 2.8 | 3 | 60 | 26.6 |
| B820028510 | 2.85 | 3 | 60 | 27.1 |
| B820029210 | 2.9 | 3 | 60 | 27.6 |
| B820029510 | 2.95 | 3 | 60 | 28 |
| B820030210 | 3 | 6 | 74 | 34 |
| B820031210 | 3.1 | 6 | 80 | 40 |
| B820032210 | 3.2 | 6 | 80 | 40 |
| B820033210 | 3.3 | 6 | 80 | 40 |
| B820034210 | 3.4 | 6 | 80 | 40 |
| B820035210 | 3.5 | 6 | 80 | 40 |
| B820036210 | 3.6 | 6 | 85 | 45 |
| B820037210 | 3.7 | 6 | 85 | 45 |
| B820038210 | 3.8 | 6 | 45 | 85 |
| B820039210 | 3.9 | 6 | 45 | 85 |
| B820040210 | 4 | 6 | 45 | 85 |
| B820041210 | 4.1 | 6 | 51 | 91 |
| B820042210 | 4.2 | 6 | 51 | 91 |
| B820043210 | 4.3 | 6 | 51 | 91 |
| B820044210 | 4.4 | 6 | 51 | 91 |
| B820045210 | 4.5 | 6 | 51 | 91 |
| B820046210 | 4.6 | 6 | 55 | 96 |
| B820047210 | 4.7 | 6 | 55 | 96 |
| B820048210 | 4.8 | 6 | 55 | 96 |
| B820049210 | 4.9 | 6 | 55 | 96 |
| B820050210 | 5 | 6 | 55 | 96 |
| B820051210 | 5.1 | 6 | 62 | 102 |
| B820052210 | 5.2 | 6 | 62 | 102 |
| B820053210 | 5.3 | 6 | 62 | 102 |
| B820054210 | 5.4 | 6 | 62 | 102 |
| B820055210 | 5.5 | 6 | 62 | 102 |
| B820056210 | 5.6 | 6 | 67 | 107 |
| B820057210 | 5.7 | 6 | 67 | 107 |
| B820058210 | 5.8 | 6 | 67 | 107 |
| B820059210 | 5.9 | 6 | 67 | 107 |
| B820060210 | 6 | 6 | 67 | 107 |
| B820065210 | 6.5 | 8 | 73 | 113 |
| B820068210 | 6.8 | 8 | 114 | 76 |
| B820070210 | 7 | 8 | 78 | 118 |
| B820075210 | 7.5 | 8 | 84 | 124 |
| B820080210 | 8 | 8 | 89 | 129 |
| B820085210 | 8.5 | 10 | 95 | 139 |
| B820090210 | 9 | 10 | 100 | 144 |
| B820095210 | 9.5 | 10 | 107 | 151 |
| B820100210 | 10 | 10 | 112 | 156 |
| B820102210 | 10.2 | 12 | 162 | 114 |
| B820105210 | 10.5 | 12 | 118 | 167 |
| B820110210 | 11 | 12 | 123 | 172 |
| B820115210 | 11.5 | 12 | 129 | 178 |
| B820120210 | 12 | 12 | 134 | 183 |
| B820125210 | 12.5 | 14 | 140 | 189 |
| B820130210 | 13 | 14 | 145 | 194 |
| B820135210 | 13.5 | 14 | 151 | 200 |
| B820140210 | 14 | 14 | 156 | 205 |
| B820145210 | 14.5 | 16 | 152 | 204 |
| B820150210 | 15 | 16 | 152 | 204 |
| B820155210 | 15.5 | 16 | 152 | 204 |
| B820160210 | 16 | 16 | 152 | 204 |
| B820170210 | 17 | 18 | 171 | 223 |
| B820175210 | 17.5 | 18 | 171 | 223 |
| B820180210 | 18 | 18 | 171 | 223 |
CONDICIONES DE CORTE:
