B-177 BROCA METAL DURO 3xD CON REFRIGERACIÓN INTERNA
Consulta el catálogo actualizado:
Descargar
BROCA METAL DURO 3xD CON REFRIGERACIÓN INTERNA
Disponibilidad: En Stock

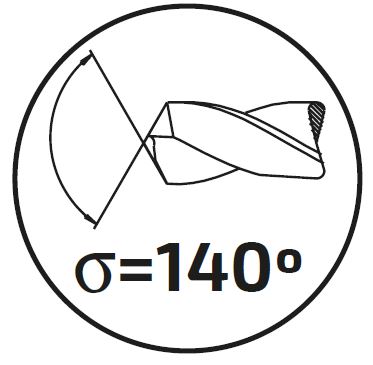

- Broca metal duro integral 3xD con recubrimiento TiAlN, con refrigeración interior y con corte a derecha. Ángulo de punta 140º, ángulo de espiral 30º. Geometría de corte especial para taladro directo sin punteado previo que a la vez garantiza una perfecta concentricidad. Afilado especial de los canales para disminuir el coeficiente de fricción, mejorando la extracción de viruta. Permite trabajar tanto en seco como con refrigeración externa.
REFERENCIAS DEL PRODUCTO:

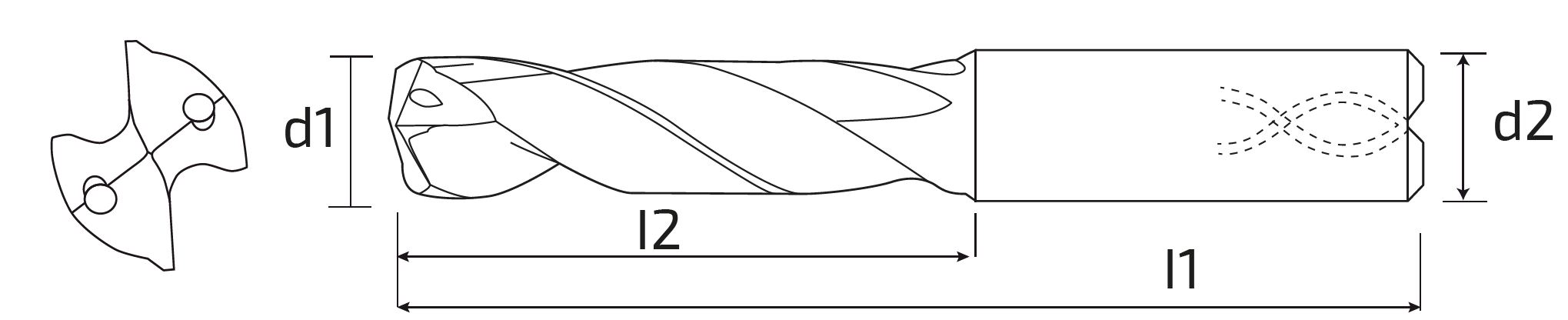

| Referencia | d1_m7 | d2h6 | l1 | l2 |
|---|---|---|---|---|
| B177030210 | 3 | 6 | 62 | 20 |
| B177031210 | 3.1 | 6 | 62 | 20 |
| B177032210 | 3.2 | 6 | 62 | 20 |
| B177033210 | 3.3 | 6 | 62 | 20 |
| B177034210 | 3.4 | 6 | 62 | 20 |
| B177035210 | 3.5 | 6 | 62 | 20 |
| B177036210 | 3.6 | 6 | 62 | 20 |
| B177037210 | 3.7 | 6 | 62 | 20 |
| B177038210 | 3.8 | 6 | 66 | 24 |
| B177039210 | 3.9 | 6 | 66 | 24 |
| B177040210 | 4 | 6 | 66 | 24 |
| B177041210 | 4.1 | 6 | 66 | 24 |
| B177042210 | 4.2 | 6 | 66 | 24 |
| B177043210 | 4.3 | 6 | 66 | 24 |
| B177044210 | 4.4 | 6 | 66 | 24 |
| B177045210 | 4.5 | 6 | 66 | 24 |
| B177046210 | 4.6 | 6 | 66 | 24 |
| B177047210 | 4.7 | 6 | 66 | 24 |
| B177048210 | 4.8 | 6 | 66 | 28 |
| B177049210 | 4.9 | 6 | 66 | 28 |
| B177050210 | 5 | 6 | 66 | 28 |
| B177051210 | 5.1 | 6 | 66 | 28 |
| B177052210 | 5.2 | 6 | 66 | 28 |
| B177053210 | 5.3 | 6 | 66 | 28 |
| B177054210 | 5.4 | 6 | 66 | 28 |
| B177055210 | 5.5 | 6 | 66 | 28 |
| B177056210 | 5.6 | 6 | 66 | 28 |
| B177057210 | 5.7 | 6 | 66 | 28 |
| B177058210 | 5.8 | 6 | 66 | 28 |
| B177059210 | 5.9 | 6 | 66 | 28 |
| B177060210 | 6 | 6 | 66 | 28 |
| B177061210 | 6.1 | 8 | 79 | 34 |
| B177062210 | 6.2 | 8 | 79 | 34 |
| B177063210 | 6.3 | 8 | 79 | 34 |
| B177064210 | 6.4 | 8 | 79 | 34 |
| B177065210 | 6.5 | 8 | 79 | 34 |
| B177066210 | 6.6 | 8 | 79 | 34 |
| B177067210 | 6.7 | 8 | 79 | 34 |
| B177068210 | 6.8 | 8 | 79 | 34 |
| B177069210 | 6.9 | 8 | 79 | 34 |
| B177070210 | 7 | 8 | 79 | 34 |
| B177071210 | 7.1 | 8 | 79 | 41 |
| B177072210 | 7.2 | 8 | 79 | 41 |
| B177073210 | 7.3 | 8 | 79 | 41 |
| B177074210 | 7.4 | 8 | 79 | 41 |
| B177075210 | 7.5 | 8 | 79 | 41 |
| B177076210 | 7.6 | 8 | 79 | 41 |
| B177077210 | 7.7 | 8 | 79 | 41 |
| B177078210 | 7.8 | 8 | 79 | 41 |
| B177079210 | 7.9 | 8 | 79 | 41 |
| B177080210 | 8 | 8 | 79 | 41 |
| B177081210 | 8.1 | 10 | 89 | 47 |
| B177082210 | 8.2 | 10 | 89 | 47 |
| B177083210 | 8.3 | 10 | 89 | 47 |
| B177084210 | 8.4 | 10 | 89 | 47 |
| B177085210 | 8.5 | 10 | 89 | 47 |
| B177086210 | 8.6 | 10 | 89 | 47 |
| B177087210 | 8.7 | 10 | 89 | 47 |
| B177088210 | 8.8 | 10 | 89 | 47 |
| B177089210 | 8.9 | 10 | 89 | 47 |
| B177090210 | 9 | 10 | 89 | 47 |
| B177091210 | 9.1 | 10 | 89 | 47 |
| B177092210 | 9.2 | 10 | 89 | 47 |
| B177093210 | 9.3 | 10 | 89 | 47 |
| B177094210 | 9.4 | 10 | 89 | 47 |
| B177095210 | 9.5 | 10 | 89 | 47 |
| B177096210 | 9.6 | 10 | 89 | 47 |
| B177097210 | 9.7 | 10 | 89 | 47 |
| B177098210 | 9.8 | 10 | 89 | 47 |
| B177099210 | 9.9 | 10 | 89 | 47 |
| B177100210 | 10 | 10 | 89 | 47 |
| B177101210 | 10.1 | 12 | 102 | 55 |
| B177102210 | 10.2 | 12 | 102 | 55 |
| B177103210 | 10.3 | 12 | 102 | 55 |
| B177104210 | 10.4 | 12 | 102 | 55 |
| B177105210 | 10.5 | 12 | 102 | 55 |
| B177106210 | 10.6 | 12 | 102 | 55 |
| B177107210 | 10.7 | 12 | 102 | 55 |
| B177108210 | 10.8 | 12 | 102 | 55 |
| B177109210 | 10.9 | 12 | 102 | 55 |
| B177110210 | 11 | 12 | 102 | 55 |
| B177111210 | 11.1 | 12 | 102 | 55 |
| B177112210 | 11.2 | 12 | 102 | 55 |
| B177113210 | 11.3 | 12 | 102 | 55 |
| B177114210 | 11.4 | 12 | 102 | 55 |
| B177115210 | 11.5 | 12 | 102 | 55 |
| B177116210 | 11.6 | 12 | 102 | 55 |
| B177117210 | 11.7 | 12 | 102 | 55 |
| B177118210 | 11.8 | 12 | 102 | 55 |
| B177119210 | 11.9 | 12 | 102 | 55 |
| B177120210 | 12 | 12 | 102 | 55 |
| B177125210 | 12.5 | 14 | 107 | 60 |
| B177128210 | 12.8 | 14 | 107 | 60 |
| B177130210 | 13 | 14 | 107 | 60 |
| B177135210 | 13.5 | 14 | 107 | 60 |
| B177138210 | 13.8 | 14 | 107 | 60 |
| B177140210 | 14 | 14 | 107 | 60 |
| B177145210 | 14.5 | 16 | 115 | 65 |
| B177148210 | 14.8 | 16 | 115 | 65 |
| B177150210 | 15 | 16 | 115 | 65 |
| B177155210 | 15.5 | 16 | 115 | 65 |
| B177158210 | 15.8 | 16 | 115 | 65 |
| B177160210 | 16 | 16 | 115 | 65 |
| B177165210 | 16.5 | 18 | 123 | 73 |
| B177168210 | 16.8 | 18 | 123 | 73 |
| B177170210 | 17 | 18 | 123 | 73 |
| B177175210 | 17.5 | 18 | 123 | 73 |
| B177178210 | 17.8 | 18 | 123 | 73 |
| B177180210 | 18 | 18 | 123 | 73 |
| B177185210 | 18.5 | 20 | 131 | 79 |
| B177190210 | 19 | 20 | 131 | 79 |
| B177195210 | 19.5 | 20 | 131 | 79 |
| B177198210 | 19.8 | 20 | 131 | 79 |
| B177200210 | 20 | 20 | 131 | 79 |

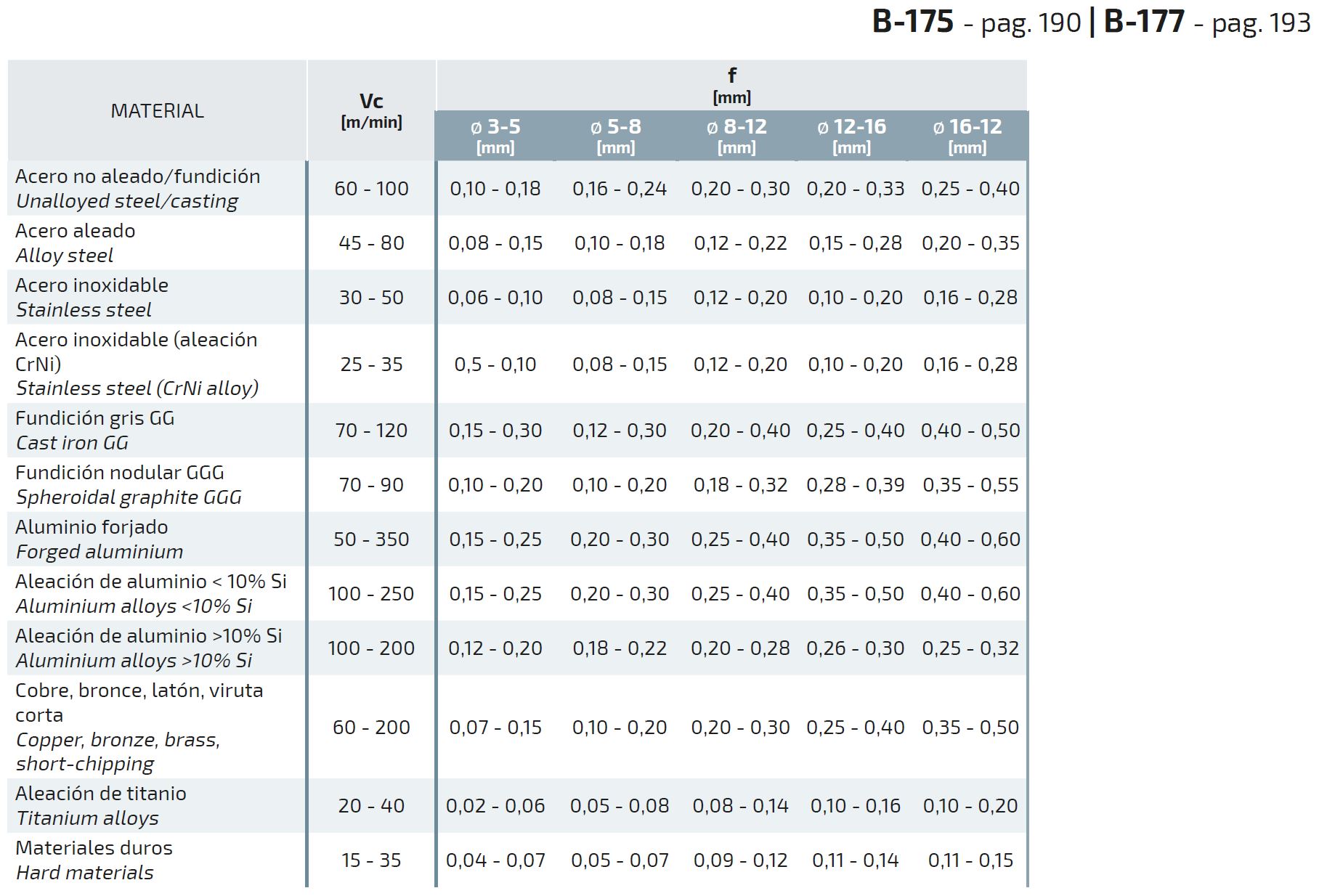

CONDICIONES DE CORTE:
