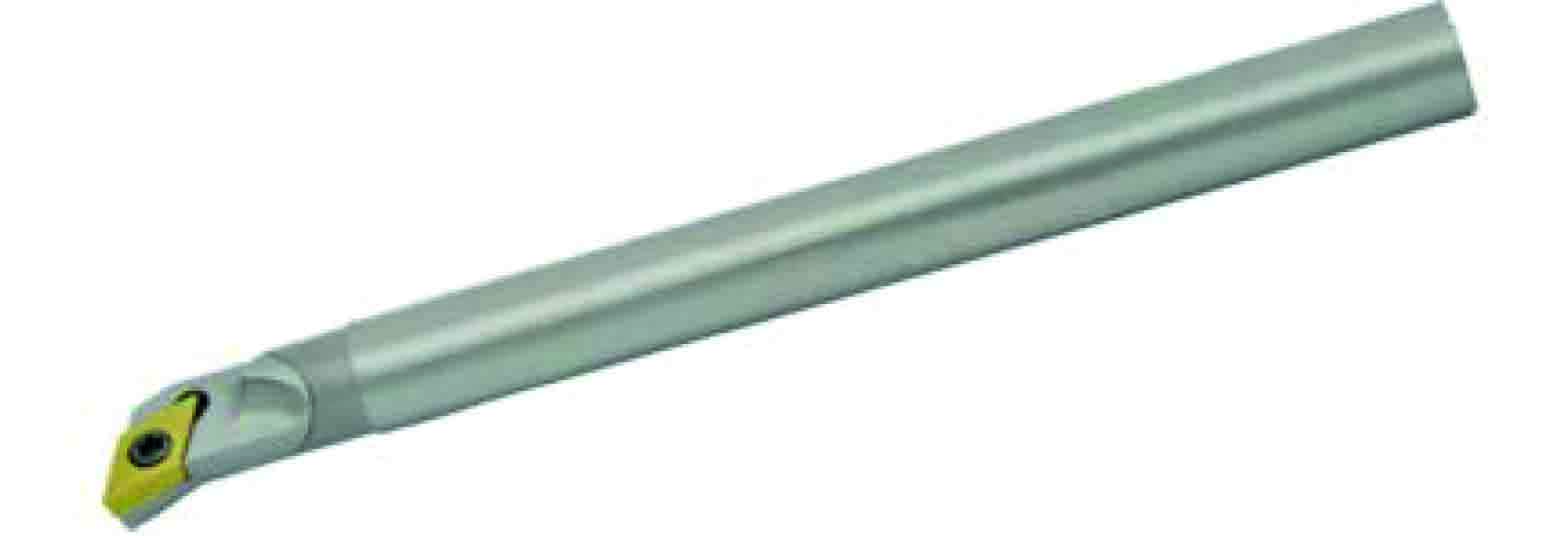

SDQCR/L SOPORTE DE METAL DURO SDQCR/L
SOPORTE DE METAL DURO SDQCR/L
Disponibilidad: En Stock
REFERENCIAS DEL PRODUCTO:

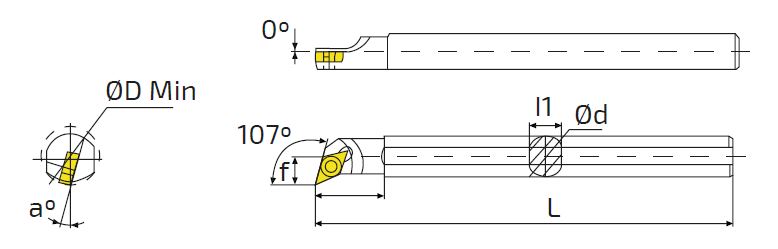

| Referencia | f | l1 | l | d | H | a | D | Plaquita |
|---|---|---|---|---|---|---|---|---|
| C08K-SDQCR/L07 | 20 | 7 | 6 | 8 | 125 | 12 | 8 | DC..0702 |
| C10K-SDQCR/L07 | 23 | 9 | 7 | 10 | 125 | 10 | 10 | DC..0702 |
| C12M-SDQCR/L07 | 30 | 11 | 9 | 12 | 150 | 8 | 12 | DC..0702 |
| C12Q-SDQCR/L07 | 30 | 11 | 9 | 12 | 150 | 8 | 12 | DC..0702 |
| C16Q-SDQCR/L07 | 30 | 15 | 10.5 | 16 | 180 | 6 | 16 | DC..0702 |
| C16Q-SDQCR/L11 | 30 | 15 | 11 | 16 | 180 | 6 | 16 | DC..11T3 |
| C16R-SDQCR/L11 | 30 | 15 | 11 | 16 | 200 | 6 | 16 | DC..11T3 |
| C20S-SDQCR/L11 | 39 | 18 | 12.5 | 20 | 250 | 6 | 20 | DC..11T3 |
