F-813 FRESA METAL DURO TORICA 2 LABIOS HSC/HHC < 65HRC (0,2 m)
Consulta el catálogo actualizado:
Descargar
FRESA METAL DURO TORICA 2 LABIOS HSC/HHC < 65HRC (0,2 m)
Disponibilidad: En Stock

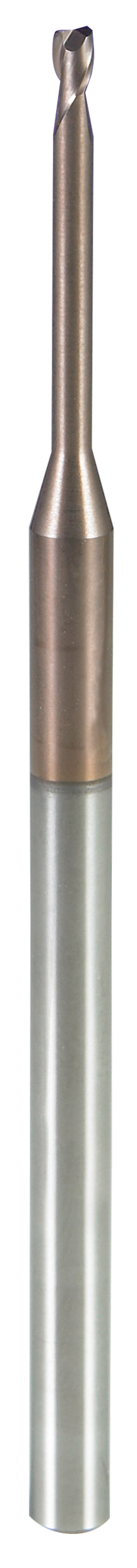

- Fresa de metal duro de cuello largo de 2 labios con corte al centro y radio en punta con recubrimiento TiSiN. Ángulo espiral de 30º. La herramienta, material y el recubrimiento están especialmente diseñados para el mecanizado HSC (High Speed Cutting) + HHC (High Hard Cutting) < 65 HRC. También podemos utilizar esta herramienta para aceros y materiales no férricos. El diámetro posterior al corte es menor que el diámetro de punta para evitar el desvío de la herramienta.
REFERENCIAS DEL PRODUCTO:

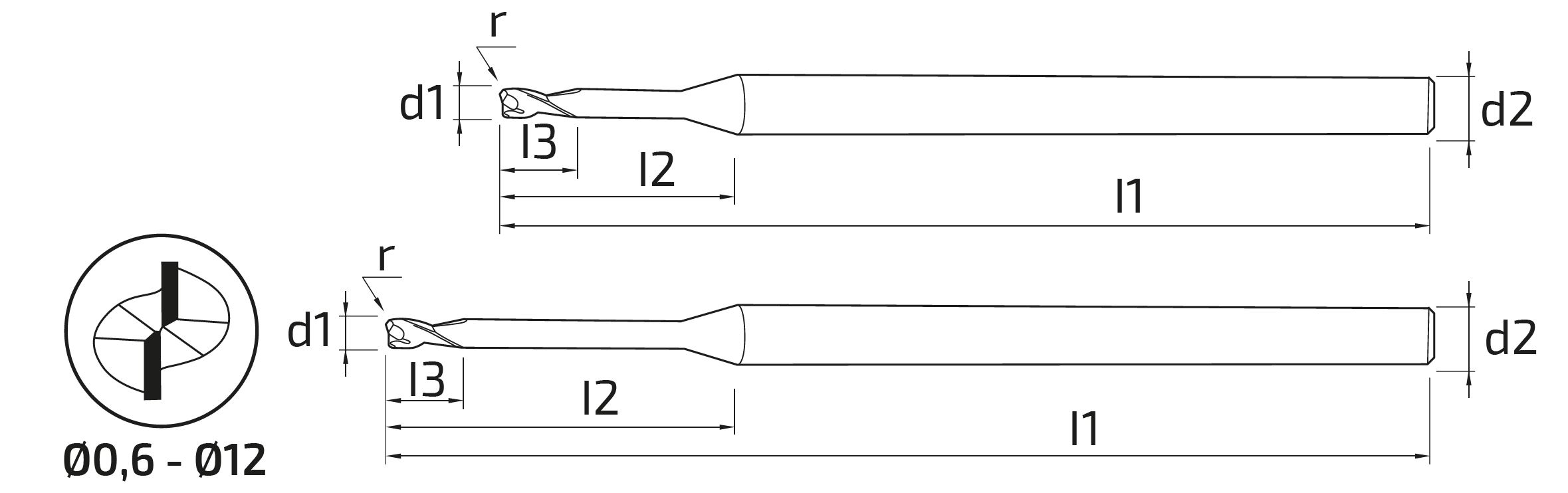

| Referencia | d1 | r | d2 | d3 | l1 | l2 |
|---|---|---|---|---|---|---|
| 813006200 | 0.6 | 0.05 | 4 | 45 | 4 | 0.7 |
| 813006210 | 0.6 | 0.05 | 4 | 45 | 6 | 0.7 |
| 813008200 | 0.8 | 0.1 | 4 | 45 | 4 | 1 |
| 813008210 | 0.8 | 0.1 | 4 | 45 | 8 | 1 |
| 813010200 | 1 | 0.2 | 4 | 45 | 4 | 1.2 |
| 813010210 | 1 | 0.2 | 4 | 50 | 10 | 1.2 |
| 813010220 | 1 | 0.2 | 4 | 50 | 20 | 1.2 |
| 813012200 | 1.2 | 0.2 | 4 | 45 | 6 | 1.5 |
| 813012210 | 1.2 | 0.2 | 4 | 50 | 10 | 1.5 |
| 813012220 | 1.2 | 0.2 | 4 | 50 | 20 | 1.5 |
| 813015200 | 1.5 | 0.2 | 4 | 50 | 10 | 1.8 |
| 813015210 | 1.5 | 0.2 | 4 | 50 | 16 | 1.8 |
| 813015220 | 1.5 | 0.2 | 4 | 50 | 20 | 1.8 |
| 813015230 | 1.5 | 0.2 | 4 | 60 | 25 | 1.8 |
| 813020200 | 2 | 0.2 | 4 | 50 | 10 | 2.5 |
| 813020210 | 2 | 0.2 | 4 | 50 | 16 | 2.5 |
| 813020220 | 2 | 0.2 | 4 | 60 | 20 | 2.5 |
| 813020230 | 2 | 0.2 | 4 | 70 | 25 | 2.5 |
| 813020240 | 2 | 0.2 | 4 | 50 | 30 | 2.5 |
| 813025200 | 2.5 | 0.2 | 4 | 50 | 10 | 3 |
| 813025210 | 2.5 | 0.2 | 4 | 50 | 20 | 3 |
| 813030200 | 3 | 0.3 | 6 | 50 | 10 | 3.5 |
| 813030210 | 3 | 0.3 | 6 | 60 | 20 | 3.5 |
| 813030220 | 3 | 0.3 | 6 | 70 | 30 | 3.5 |
| 813030230 | 3 | 0.3 | 6 | 80 | 40 | 3.5 |
| 813040200 | 4 | 0.5 | 6 | 60 | 20 | 4.5 |
| 813040210 | 4 | 0.5 | 6 | 70 | 30 | 4.5 |
| 813040220 | 4 | 0.5 | 6 | 80 | 40 | 4.5 |
| 813050200 | 5 | 0.2 | 6 | 60 | 15 | 6 |
| 813050210 | 5 | 0.2 | 6 | 70 | 30 | 6 |
| 813050220 | 5 | 0.2 | 6 | 80 | 40 | 6 |
| 813050230 | 5 | 0.5 | 6 | 60 | 15 | 6 |
| 813050240 | 5 | 0.5 | 6 | 70 | 30 | 6 |
| 813050250 | 5 | 0.5 | 6 | 80 | 40 | 6 |
| 813060200 | 6 | 0.3 | 6 | 60 | 20 | 7 |
| 813060210 | 6 | 0.3 | 6 | 90 | 40 | 7 |
| 813060220 | 6 | 0.5 | 6 | 60 | 20 | 7 |
| 813060230 | 6 | 0.5 | 6 | 90 | 40 | 7 |
| 813060240 | 6 | 1 | 6 | 60 | 20 | 7 |
| 813060250 | 6 | 1 | 6 | 90 | 40 | 7 |
| 813060260 | 6 | 1.5 | 6 | 60 | 20 | 7 |
| 813060270 | 6 | 1.5 | 6 | 90 | 40 | 7 |
| 813080200 | 8 | 0.5 | 8 | 100 | 40 | 9 |
| 813080210 | 8 | 1 | 8 | 65 | 22 | 9 |
| 813080220 | 8 | 1 | 8 | 100 | 40 | 9 |
| 813080230 | 8 | 1.5 | 8 | 65 | 22 | 9 |
| 813080240 | 8 | 1.5 | 8 | 100 | 40 | 9 |
| 813100200 | 10 | 0.5 | 10 | 70 | 24 | 11 |
| 813100210 | 10 | 0.5 | 10 | 100 | 45 | 11 |
| 813100220 | 10 | 1 | 10 | 70 | 24 | 11 |
| 813100230 | 10 | 1 | 10 | 100 | 45 | 11 |
| 813100240 | 10 | 1.5 | 10 | 70 | 24 | 11 |
| 813100250 | 10 | 1.5 | 10 | 100 | 45 | 11 |
| 813100260 | 10 | 2 | 10 | 70 | 24 | 11 |
| 813100270 | 10 | 2 | 10 | 100 | 45 | 11 |
| 813120200 | 12 | 0.5 | 12 | 80 | 26 | 13 |
| 813120210 | 12 | 0.5 | 12 | 110 | 50 | 13 |
| 813120220 | 12 | 1 | 12 | 80 | 26 | 13 |
| 813120230 | 12 | 1 | 12 | 110 | 50 | 13 |
| 813120240 | 12 | 1.5 | 12 | 80 | 26 | 13 |
| 813120250 | 12 | 1.5 | 12 | 110 | 50 | 13 |
| 813120260 | 12 | 2 | 12 | 80 | 26 | 13 |
| 813120270 | 12 | 2 | 12 | 110 | 50 | 13 |
| 813120280 | 12 | 3 | 12 | 80 | 26 | 13 |
| 813120290 | 12 | 3 | 12 | 110 | 50 | 13 |

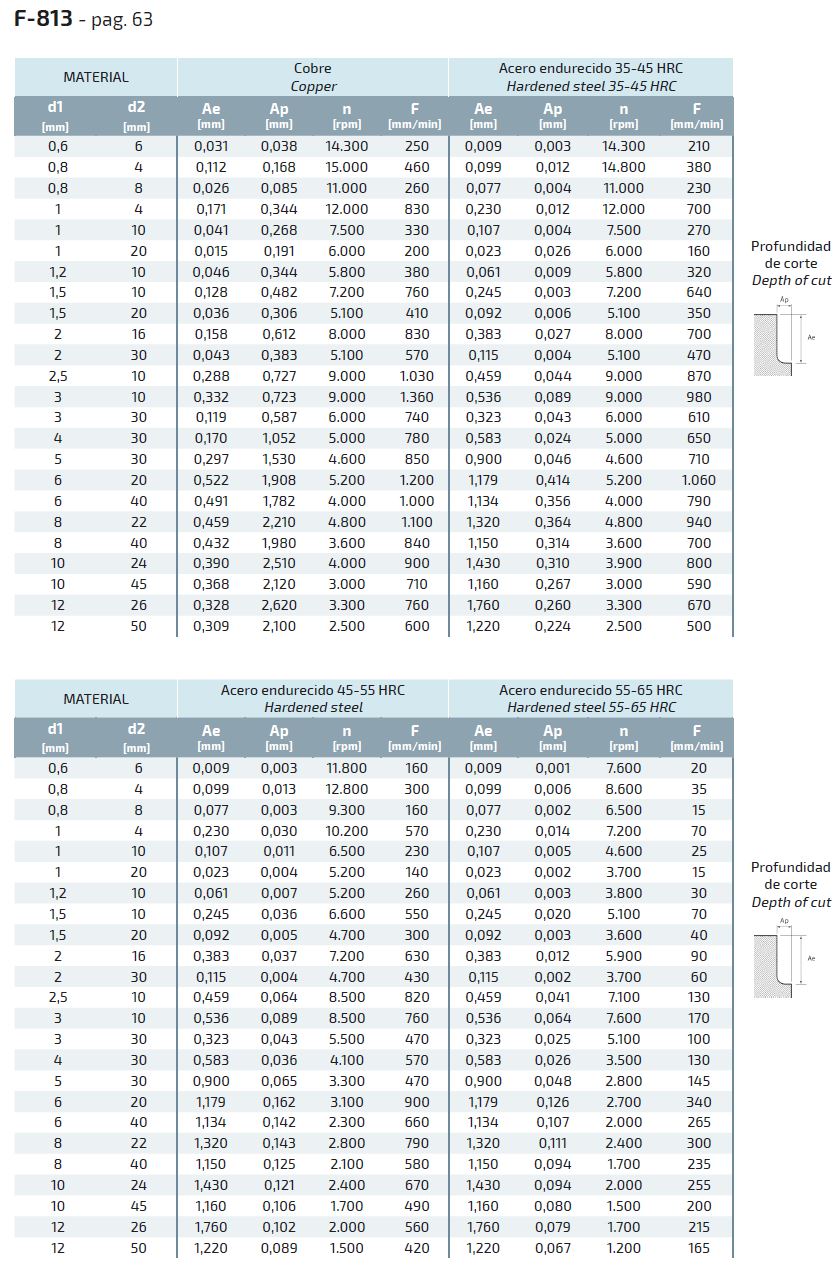

CONDICIONES DE CORTE:
