F-411 FRESA METAL DURO TÓRICA 4 LABIOS <60 HRC
FRESA METAL DURO TÓRICA 4 LABIOS <60 HRC
Disponibilidad: En Stock

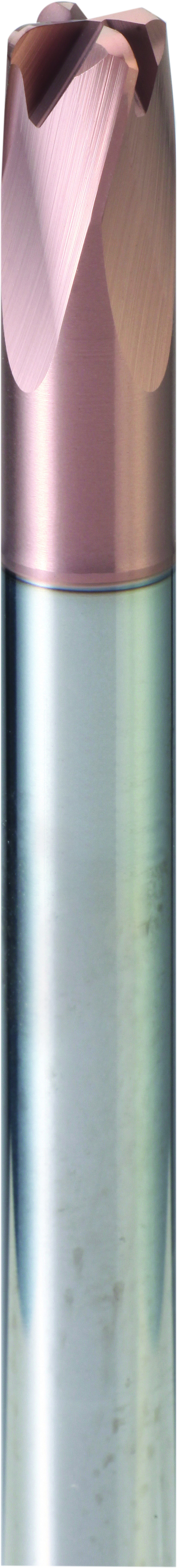

- Fresa metal duro de 4 labios tórica con recubrimiento TiSiN para acero hasta 60 HRC. Diseñada para trabajar a baja velocidad de corte y alto avance. Es adecuada para aplicaciones de mecanizado pesado y desbaste. Tiene gran resistencia al desgaste gracias a su grado WC ultrafino.
REFERENCIAS DEL PRODUCTO:

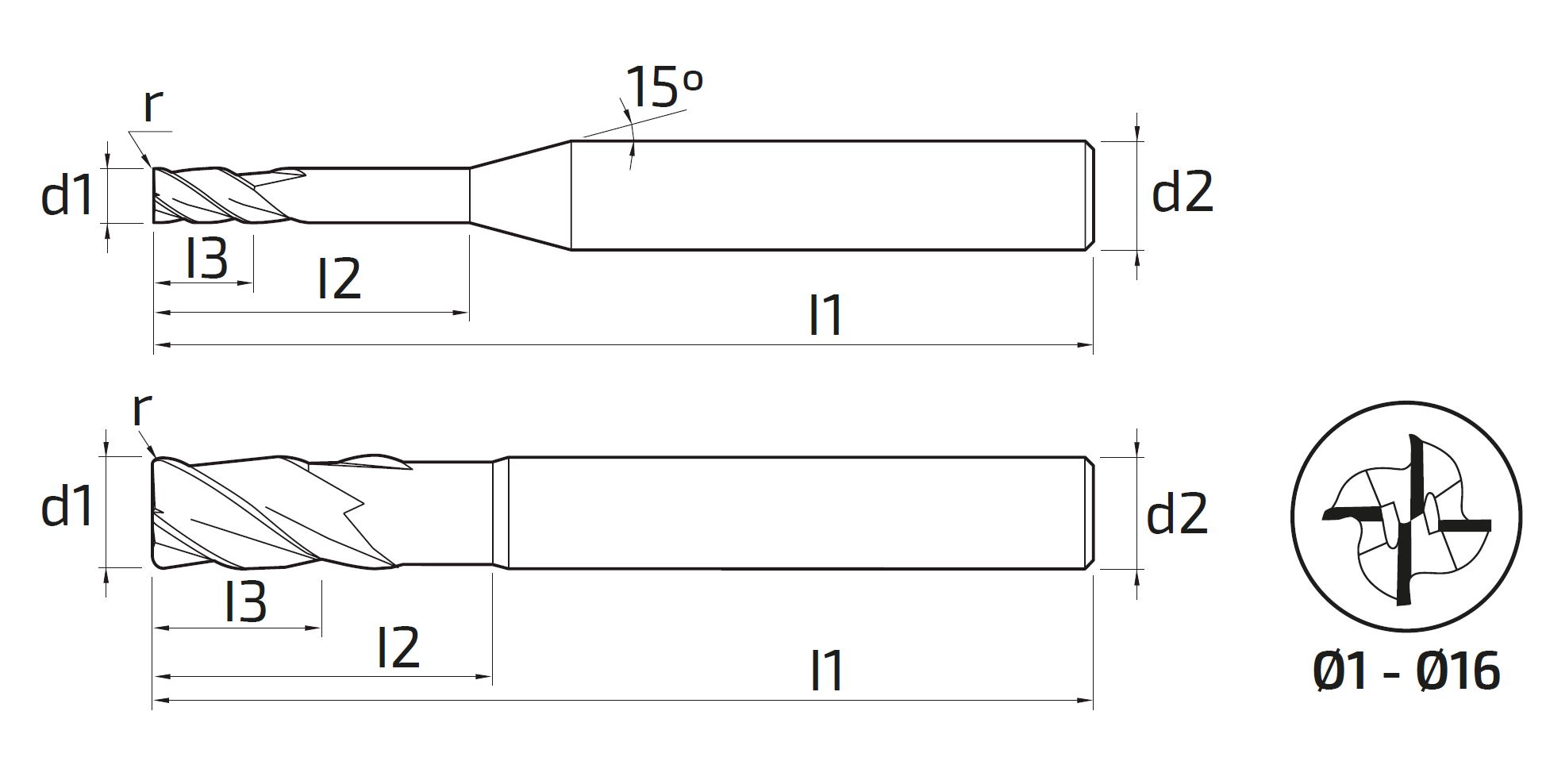

| Referencia | d1 | r | d2 | l1 | l2 | l3 | z |
|---|---|---|---|---|---|---|---|
| 411010200 | 1 | 0.2 | 4 | 50 | 2.5 | 1 | 4 |
| 411015200 | 1.5 | 0.5 | 4 | 50 | 4 | 1.5 | 4 |
| 411020200 | 2 | 0.5 | 6 | 50 | 6 | 2 | 4 |
| 411030200 | 3 | 0.5 | 6 | 50 | 8 | 3 | 4 |
| 411040200 | 4 | 0.5 | 6 | 60 | 12 | 4 | 4 |
| 411040210 | 4 | 0.5 | 6 | 60 | 16 | 4 | 4 |
| 411040220 | 4 | 1 | 6 | 60 | 12 | 4 | 4 |
| 411040230 | 4 | 1 | 6 | 60 | 16 | 4 | 4 |
| 411050200 | 5 | 0.5 | 6 | 60 | 15 | 5 | 4 |
| 411050210 | 5 | 1 | 6 | 60 | 15 | 5 | 4 |
| 411060200 | 6 | 0.3 | 6 | 60 | 15 | 6 | 4 |
| 411060210 | 6 | 0.5 | 6 | 60 | 15 | 6 | 4 |
| 411060220 | 6 | 1 | 6 | 60 | 15 | 6 | 4 |
| 411060230 | 6 | 1.5 | 6 | 60 | 15 | 6 | 4 |
| 411080200 | 8 | 0.3 | 8 | 60 | 16 | 8 | 4 |
| 411080210 | 8 | 0.5 | 8 | 60 | 16 | 8 | 4 |
| 411080220 | 8 | 0.5 | 8 | 80 | 20 | 8 | 4 |
| 411080230 | 8 | 0.5 | 8 | 110 | 30 | 8 | 4 |
| 411080240 | 8 | 1 | 8 | 60 | 16 | 8 | 4 |
| 411080250 | 8 | 1 | 8 | 80 | 20 | 8 | 4 |
| 411080260 | 8 | 1 | 8 | 110 | 30 | 8 | 4 |
| 411080270 | 8 | 2 | 8 | 60 | 16 | 8 | 4 |
| 411080280 | 8 | 2 | 8 | 80 | 20 | 8 | 4 |
| 411080290 | 8 | 2 | 8 | 110 | 30 | 8 | 4 |
| 411100200 | 10 | 0.3 | 10 | 70 | 20 | 10 | 20 |
| 411100210 | 10 | 0.5 | 10 | 70 | 20 | 10 | 20 |
| 411100220 | 10 | 0.5 | 10 | 90 | 25 | 10 | 25 |
| 411100230 | 10 | 0.5 | 10 | 120 | 30 | 10 | 30 |
| 411100240 | 10 | 1 | 10 | 70 | 20 | 10 | 20 |
| 411100250 | 10 | 1 | 10 | 90 | 25 | 10 | 25 |
| 411100260 | 10 | 1 | 10 | 120 | 30 | 10 | 30 |
| 411100270 | 10 | 2 | 10 | 70 | 20 | 10 | 20 |
| 411100280 | 10 | 2 | 10 | 90 | 25 | 10 | 25 |
| 411100290 | 10 | 2 | 10 | 120 | 30 | 10 | 30 |
| 411120200 | 12 | 0.5 | 12 | 80 | 25 | 12 | 25 |
| 411120210 | 12 | 0.5 | 12 | 100 | 30 | 12 | 30 |
| 411120220 | 12 | 0.5 | 12 | 130 | 35 | 12 | 35 |
| 411120230 | 12 | 1 | 12 | 80 | 25 | 12 | 25 |
| 411120240 | 12 | 1 | 12 | 100 | 30 | 12 | 30 |
| 411120250 | 12 | 1 | 12 | 130 | 35 | 12 | 35 |
| 411120260 | 12 | 2 | 12 | 80 | 25 | 12 | 25 |
| 411120270 | 12 | 2 | 12 | 100 | 30 | 12 | 30 |
| 411120280 | 12 | 2 | 12 | 130 | 35 | 12 | 35 |
| 411120290 | 12 | 3 | 12 | 80 | 25 | 12 | 25 |
| 411160200 | 16 | 1 | 16 | 110 | 30 | 16 | 30 |
| 411160210 | 16 | 1 | 16 | 160 | 40 | 16 | 40 |
| 411160220 | 16 | 2 | 16 | 110 | 30 | 16 | 30 |
| 411160230 | 16 | 2 | 16 | 160 | 40 | 16 | 40 |

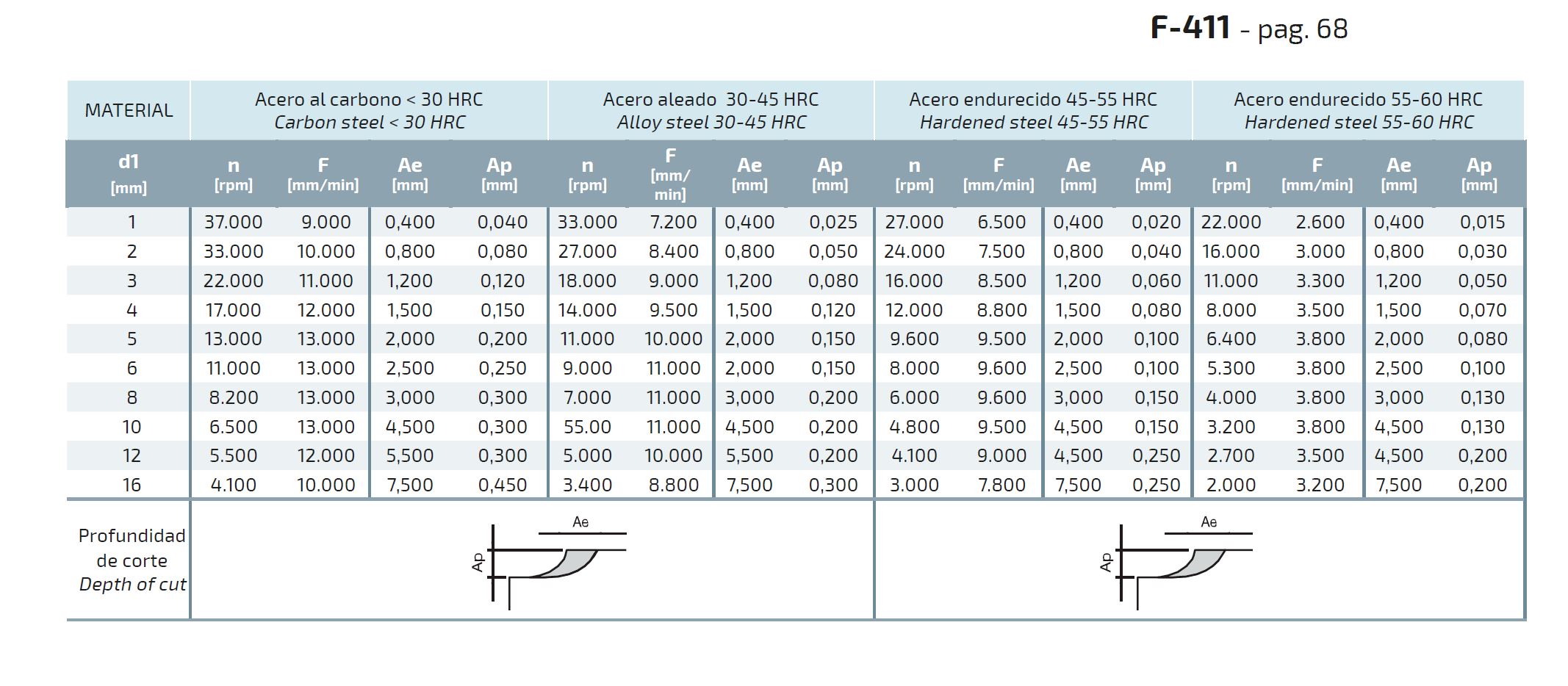

CONDICIONES DE CORTE:
