F-216 FRESA METAL DURO DE 2 LABIOS TÓRICA CON CUELLO CÓNICO <65 HRC (0,2 m)
FRESA METAL DURO DE 2 LABIOS TÓRICA CON CUELLO CÓNICO <65 HRC (0,2 m)
Disponibilidad: En Stock
- Fresa de alta calidad tórica de 2 labios con recubrimiento TiSiN. Ofrece una excelente resistencia al desgaste gracias a su recubrimiento PVD con base de Si. Tolerancia de filo de alta precisión. Espectacular rendimiento en el mecanizado a altas velocidades gracias a su grado WC ultrafino (0,2 μm). Indicada para fresado de aceros pre endurecidos y endurecidos (50-65 HRC).
REFERENCIAS DEL PRODUCTO:

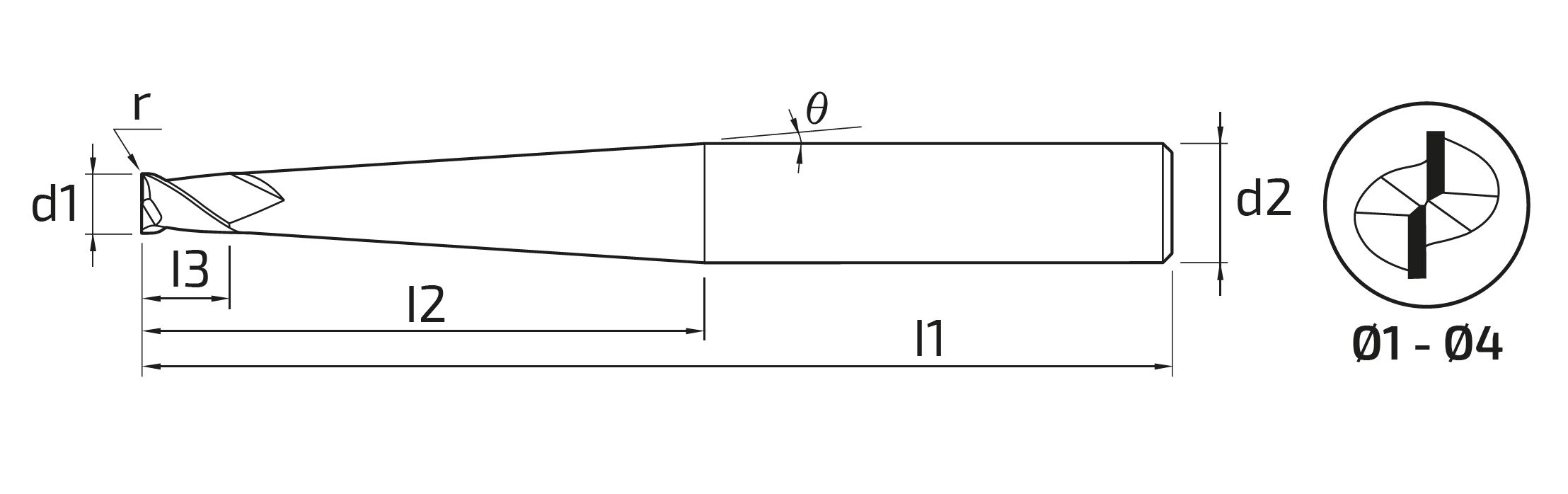

| Referencia | d1 | r | d2 | l1 | l2 | l3 | z | Ø |
|---|---|---|---|---|---|---|---|---|
| 216010200 | 1 | 0.1 | 4 | 50 | 10 | 1 | 2 | 1 |
| 216010210 | 1 | 0.1 | 4 | 60 | 20 | 1 | 2 | 1 |
| 216010220 | 1 | 0.1 | 4 | 70 | 30 | 1 | 2 | 1 |
| 216010230 | 1 | 0.2 | 4 | 50 | 10 | 1 | 2 | 1 |
| 216010240 | 1 | 0.2 | 4 | 60 | 20 | 1 | 2 | 1 |
| 216010250 | 1 | 0.2 | 4 | 70 | 30 | 1 | 2 | 1 |
| 216010260 | 1 | 0.3 | 4 | 50 | 10 | 1 | 2 | 1 |
| 216010270 | 1 | 0.3 | 4 | 60 | 20 | 1 | 2 | 1 |
| 216010280 | 1 | 0.3 | 4 | 70 | 30 | 1 | 2 | 1 |
| 216015200 | 1.5 | 0.2 | 4 | 50 | 10 | 1.5 | 2 | 1 |
| 216015210 | 1.5 | 0.2 | 4 | 60 | 20 | 1.5 | 2 | 1 |
| 216015220 | 1.5 | 0.2 | 4 | 70 | 30 | 1.5 | 2 | 1 |
| 216015230 | 1.5 | 0.3 | 4 | 50 | 10 | 1.5 | 2 | 1 |
| 216015240 | 1.5 | 0.3 | 4 | 60 | 20 | 1.5 | 2 | 1 |
| 216015250 | 1.5 | 0.3 | 4 | 70 | 30 | 1.5 | 2 | 1 |
| 216015260 | 1.5 | 0.5 | 4 | 50 | 10 | 1.5 | 2 | 1 |
| 216015270 | 1.5 | 0.5 | 4 | 60 | 20 | 1.5 | 2 | 1 |
| 216015280 | 1.5 | 0.5 | 4 | 70 | 30 | 1.5 | 2 | 1 |
| 216020200 | 2 | 0.2 | 4 | 60 | 20 | 2 | 2 | 1 |
| 216020210 | 2 | 0.2 | 4 | 70 | 30 | 2 | 2 | 1 |
| 216020220 | 2 | 0.2 | 4 | 80 | 40 | 2 | 2 | 1 |
| 216020230 | 2 | 0.3 | 4 | 60 | 20 | 2 | 2 | 1 |
| 216020240 | 2 | 0.3 | 4 | 70 | 30 | 2 | 2 | 1 |
| 216020250 | 2 | 0.3 | 4 | 80 | 40 | 2 | 2 | 1 |
| 216020260 | 2 | 0.5 | 4 | 60 | 20 | 2 | 2 | 1 |
| 216020270 | 2 | 0.5 | 4 | 70 | 30 | 2 | 2 | 1 |
| 216020280 | 2 | 0.5 | 4 | 80 | 40 | 2 | 2 | 1 |
| 216030200 | 3 | 0.2 | 6 | 70 | 30 | 3 | 2 | 1 |
| 216030210 | 3 | 0.2 | 6 | 80 | 40 | 3 | 2 | 1 |
| 216030220 | 3 | 0.2 | 6 | 90 | 50 | 3 | 2 | 1 |
| 216030230 | 3 | 0.2 | 6 | 100 | 60 | 3 | 2 | 1 |
| 216030240 | 3 | 0.3 | 6 | 70 | 30 | 3 | 2 | 1 |
| 216030250 | 3 | 0.3 | 6 | 80 | 40 | 3 | 2 | 1 |
| 216030260 | 3 | 0.3 | 6 | 90 | 50 | 3 | 2 | 1 |
| 216030270 | 3 | 0.3 | 6 | 100 | 60 | 3 | 2 | 1 |
| 216030280 | 3 | 0.5 | 6 | 70 | 30 | 3 | 2 | 1 |
| 216030290 | 3 | 0.5 | 6 | 80 | 40 | 3 | 2 | 1 |
| 216030300 | 3 | 0.5 | 6 | 90 | 50 | 3 | 2 | 1 |
| 216030310 | 3 | 0.5 | 6 | 100 | 60 | 3 | 2 | 1 |
| 216030320 | 3 | 1 | 6 | 70 | 30 | 3 | 2 | 1 |
| 216030330 | 3 | 1 | 6 | 80 | 40 | 3 | 2 | 1 |
| 216030340 | 3 | 1 | 6 | 90 | 50 | 3 | 2 | 1 |
| 216030350 | 3 | 1 | 6 | 100 | 60 | 3 | 2 | 1 |
| 216040200 | 4 | 0.2 | 6 | 70 | 30 | 4 | 2 | 1 |
| 216040210 | 4 | 0.2 | 6 | 80 | 40 | 4 | 2 | 1 |
| 216040220 | 4 | 0.2 | 6 | 90 | 50 | 4 | 2 | 1 |
| 216040230 | 4 | 0.2 | 6 | 100 | 60 | 4 | 2 | 1 |
| 216040240 | 4 | 0.3 | 6 | 70 | 30 | 4 | 2 | 1 |
| 216040250 | 4 | 0.3 | 6 | 80 | 40 | 4 | 2 | 1 |
| 216040260 | 4 | 0.3 | 6 | 90 | 50 | 4 | 2 | 1 |
| 216040270 | 4 | 0.3 | 6 | 100 | 60 | 4 | 2 | 1 |
| 216040280 | 4 | 0.5 | 6 | 70 | 30 | 4 | 2 | 1 |
| 216040290 | 4 | 0.5 | 6 | 80 | 40 | 4 | 2 | 1 |
| 216040300 | 4 | 0.5 | 6 | 90 | 50 | 4 | 2 | 1 |
| 216040310 | 4 | 0.5 | 6 | 100 | 60 | 4 | 2 | 1 |
| 216040320 | 4 | 1 | 6 | 70 | 30 | 4 | 2 | 1 |
| 216040330 | 4 | 1 | 6 | 80 | 40 | 4 | 2 | 1 |
| 216040340 | 4 | 1 | 6 | 90 | 50 | 4 | 2 | 1 |
| 216040350 | 4 | 1 | 6 | 100 | 60 | 4 | 2 | 1 |

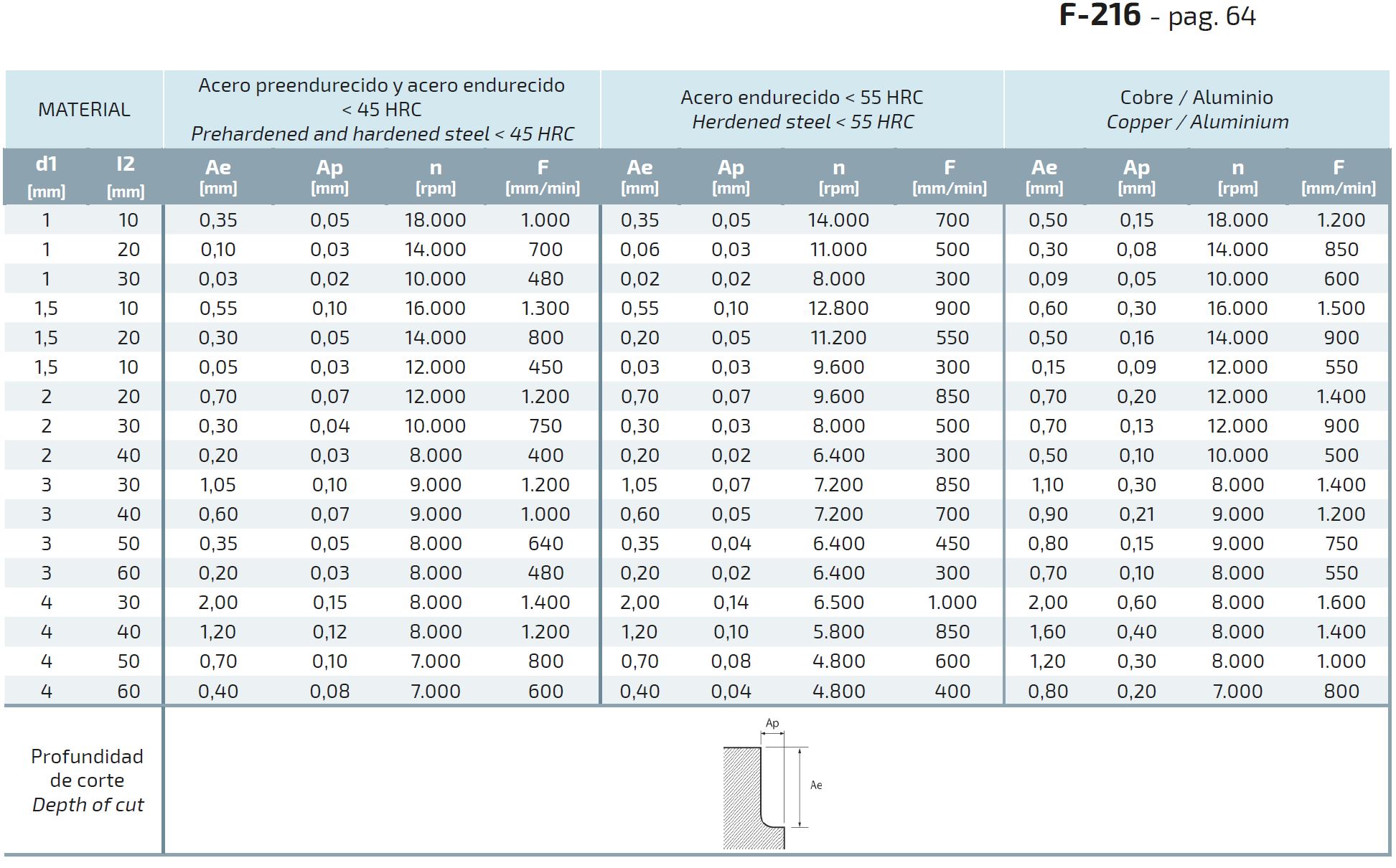

CONDICIONES DE CORTE:
