F-112 FRESA CBN 2 LABIOS TÓRICA <70 HRC
FRESA CBN 2 LABIOS TÓRICA <70 HRC
Disponibilidad: En Stock
- Fresa CBN tórica de 2 labios especial para el mecanizado de materiales extremadamente duros (70 HRC) a alta velocidad. Adecuada para mecanizar acero de moldes endurecido y grafito.
REFERENCIAS DEL PRODUCTO:

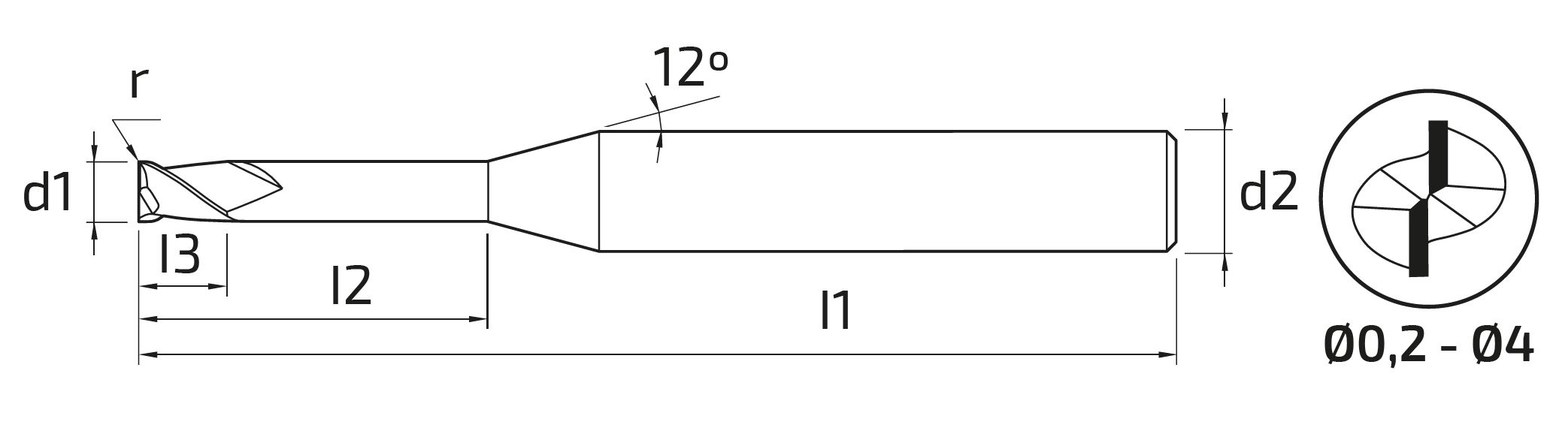

| Referencia | d1 | r | d2 | l1 | l2 | l3 | z |
|---|---|---|---|---|---|---|---|
| 112002200 | 0.2 | 0.03 | 4 | 54 | 0.3 | 0.3 | 2 |
| 112003200 | 0.3 | 0.05 | 4 | 54 | 0.3 | 0.3 | 2 |
| 112004200 | 0.4 | 0.05 | 4 | 54 | 1 | 0.4 | 2 |
| 112005200 | 0.5 | 0.05 | 4 | 54 | 1.5 | 0.5 | 2 |
| 112006200 | 0.6 | 0.05 | 4 | 54 | 2 | 0.6 | 2 |
| 112008200 | 0.8 | 0.1 | 4 | 54 | 2 | 0.8 | 2 |
| 112010200 | 1 | 0.1 | 4 | 54 | 2 | 0.9 | 2 |
| 112012200 | 1.2 | 0.1 | 4 | 45 | 3 | 1 | 2 |
| 112015200 | 1.5 | 0.1 | 4 | 54 | 4 | 1.4 | 2 |
| 112020200 | 2 | 0.1 | 4 | 54 | 3 | 1.7 | 2 |
| 112020210 | 2 | 0.2 | 4 | 54 | 3 | 1.7 | 2 |
| 112030200 | 3 | 0.1 | 4 | 54 | 6 | 2.3 | 2 |
| 112030210 | 3 | 0.2 | 4 | 54 | 6 | 2.3 | 2 |
| 112030220 | 3 | 0.3 | 4 | 54 | 6 | 2.3 | 2 |
| 112040200 | 4 | 0.1 | 4 | 54 | 12 | 3 | 2 |
| 112040210 | 4 | 0.2 | 4 | 54 | 12 | 3 | 2 |
| 112040230 | 4 | 0.3 | 4 | 54 | 12 | 3 | 2 |
| 112040240 | 4 | 0.5 | 4 | 54 | 12 | 3 | 2 |
CONDICIONES DE CORTE:
