CR-M PORTAHERRAMIENTAS CR-M
Consulta el catálogo actualizado:
Descargar
PORTAHERRAMIENTAS CR-M
Disponibilidad: En Stock
REFERENCIAS DEL PRODUCTO:

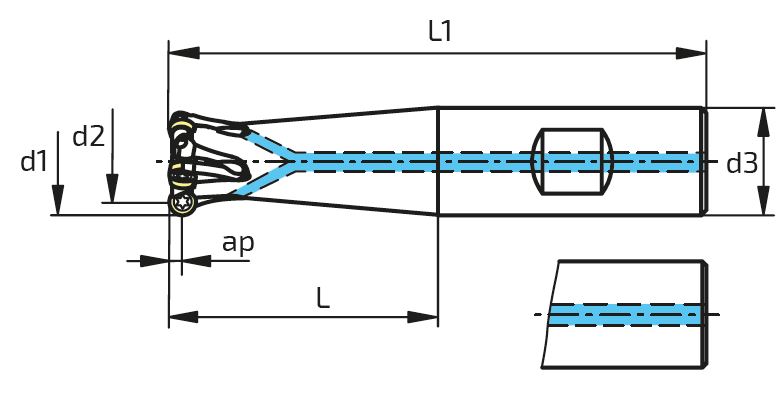

| Referencia | ap | d1 | d2 | d3 | l1 | L | Plaquita | z |
|---|---|---|---|---|---|---|---|---|
| CRD05-010M02RL | 2.5 | 10 | 5 | 10 | 25 | 165 | RD..0501.. | 2 |
| CRD05-010M02R | 2.5 | 10 | 5 | 12 | 20 | 67 | RD..0501.. | 2 |
| CRD05-012M03RL | 2.5 | 12 | 7 | 12 | 32 | 165 | RD..0501.. | 3 |
| CRD05-012M03R | 2.5 | 12 | 7 | 16 | 25 | 75 | RD..0501.. | 3 |
| CRD05-016M04RL | 2.5 | 16 | 11 | 16 | 40 | 165 | RD..0501.. | 4 |
| CRD05-016M04R | 2.5 | 16 | 11 | 16 | 32 | 81 | RD..0501.. | 4 |
| CRD05-020M05RL | 2.5 | 20 | 15 | 20 | 50 | 165 | RD..0501.. | 5 |
| CRD05-020M05R | 2.5 | 20 | 15 | 20 | 40 | 91 | RD..0501.. | 5 |
| CRD08-016M02RB | 4 | 16 | 8 | 16 | 40 | 89 | RD..0802.. | 2 |
| CRD08-016M02RL | 4 | 16 | 8 | 16 | 40 | 165 | RD..0802.. | 2 |
| CRD08-016M02R | 4 | 16 | 8 | 16 | 32 | 81 | RD..0802.. | 2 |
| CRD08-020M03RL | 4 | 20 | 12 | 20 | 50 | 200 | RD..0802.. | 3 |
| CRD08-020M03RB | 4 | 20 | 12 | 20 | 60 | 110 | RD..0802.. | 3 |
| CRD08-020M03RM | 4 | 20 | 12 | 20 | 60 | 110 | RD..0802.. | 3 |
| CRD08-020M03R | 4 | 20 | 12 | 20 | 40 | 91 | RD..0802.. | 3 |
| CRD08-025M04RB | 4 | 25 | 17 | 25 | 60 | 116 | RD..0802.. | 4 |
| CRD08-025M04RM | 4 | 25 | 17 | 25 | 60 | 116 | RD..0802.. | 4 |
| CRD08-025M04RL | 4 | 25 | 17 | 25 | 60 | 225 | RD..0802.. | 4 |
| CRD08-025M04R | 4 | 25 | 17 | 25 | 50 | 107 | RD..0802.. | 4 |
| CRD08-032M06R | 4 | 32 | 25 | 32 | 70 | 130 | RD..0802.. | 6 |
| CRP10-020M02R | 5 | 20 | 10 | 20 | 50 | 102 | RP..10T3.. | 2 |
| CRP10-020M02RL | 5 | 20 | 10 | 20 | 50 | 200 | RP..10T3.. | 2 |
| CRP10-025M03R | 5 | 25 | 15 | 25 | 60 | 117 | RP..10T3.. | 3 |
| CRP10-025M03RB | 5 | 25 | 15 | 25 | 60 | 116 | RP..10T3.. | 3 |
| CRP10-025M03RL | 5 | 25 | 15 | 25 | 60 | 225 | RP..10T3.. | 3 |
| CRP10-025M03RM | 5 | 25 | 15 | 25 | 60 | 116 | RP..10T3.. | 3 |
| CRP10-032M04RL | 5 | 32 | 22 | 32 | 70 | 131 | RP..10T3.. | 4 |
| CRP10-032M04R | 5 | 32 | 22 | 32 | 70 | 130 | RP..10T3.. | 4 |
| CRP12-025M02R | 6 | 25 | 13 | 25 | 30 | 86 | RP..1204.. | 2 |
| CRP12-032M03RB | 6 | 32 | 20 | 32 | 40 | 100 | RP..1204.. | 3 |
| CRP12-032M03R | 6 | 32 | 20 | 32 | 40 | 100 | RP..1204.. | 3 |
