B-320 BROCA METAL DURO 3XD PARA ACERO INOXIDABLE CON REFRIGERACIÓN INTERIOR
Consulta el catálogo actualizado:
Descargar
BROCA METAL DURO 3XD PARA ACERO INOXIDABLE CON REFRIGERACIÓN INTERIOR
Disponibilidad: En Stock
-
Broca metal duro integral 3xD con recubrimiento TiAlCN y refrigeración interior para acero inoxidable. Ángulo de punta
135º, ángulo de espiral 30º.
REFERENCIAS DEL PRODUCTO:

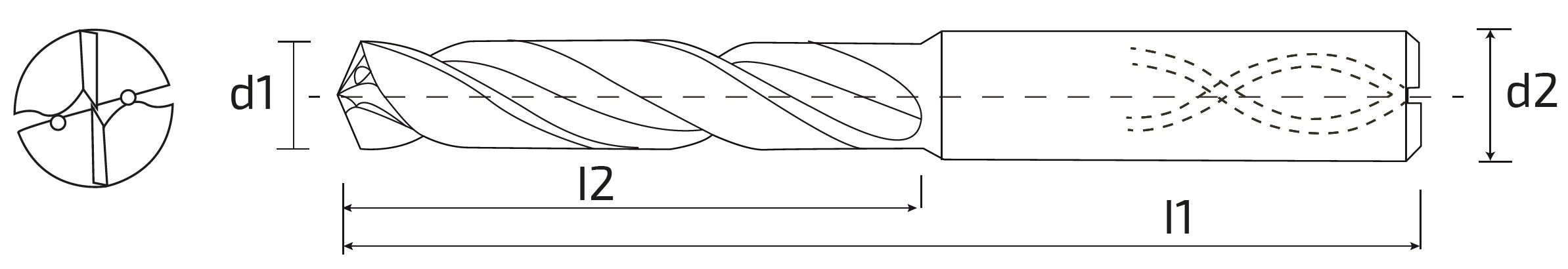

| Referencia | d1_m7 | d2h5 | l1 | l2 |
|---|---|---|---|---|
| B320027210 | 2.7 | 3 | 55 | 11 |
| B320030210 | 3 | 6 | 62 | 20 |
| B320031210 | 3.1 | 6 | 62 | 20 |
| B320032210 | 3.2 | 6 | 62 | 20 |
| B320033210 | 3.3 | 6 | 62 | 20 |
| B320034210 | 3.4 | 6 | 62 | 20 |
| B320035210 | 3.5 | 6 | 62 | 20 |
| B320036210 | 3.6 | 6 | 62 | 20 |
| B320037210 | 3.7 | 6 | 62 | 20 |
| B320038210 | 3.8 | 6 | 66 | 24 |
| B320039210 | 3.9 | 6 | 66 | 24 |
| B320040210 | 4 | 6 | 66 | 24 |
| B320041210 | 4.1 | 6 | 66 | 24 |
| B320042210 | 4.2 | 6 | 66 | 24 |
| B320043210 | 4.3 | 6 | 66 | 24 |
| B320044210 | 4.4 | 6 | 66 | 24 |
| B320045210 | 4.5 | 6 | 66 | 24 |
| B320046210 | 4.6 | 6 | 66 | 24 |
| B320047210 | 4.7 | 6 | 66 | 24 |
| B320048210 | 4.8 | 6 | 66 | 26 |
| B320049210 | 4.9 | 6 | 66 | 26 |
| B320050210 | 5 | 6 | 66 | 26 |
| B320051210 | 5.1 | 6 | 66 | 26 |
| B320052210 | 5.2 | 6 | 66 | 26 |
| B320053210 | 5.3 | 6 | 66 | 26 |
| B320054210 | 5.4 | 6 | 66 | 26 |
| B320055210 | 5.5 | 6 | 66 | 26 |
| B320056210 | 5.6 | 6 | 66 | 26 |
| B320057210 | 5.7 | 6 | 66 | 26 |
| B320058210 | 5.8 | 6 | 66 | 26 |
| B320059210 | 5.9 | 6 | 66 | 26 |
| B320060210 | 6 | 6 | 66 | 26 |
| B320061210 | 6.1 | 8 | 79 | 34 |
| B320062210 | 6.2 | 8 | 79 | 34 |
| B320063210 | 6.3 | 8 | 79 | 34 |
| B320064210 | 6.4 | 8 | 79 | 34 |
| B320065210 | 6.5 | 8 | 79 | 34 |
| B320066210 | 6.6 | 8 | 79 | 34 |
| B320067210 | 6.7 | 8 | 79 | 34 |
| B320068210 | 6.8 | 8 | 79 | 34 |
| B320069210 | 6.9 | 8 | 79 | 34 |
| B320070210 | 7 | 8 | 79 | 34 |
| B320071210 | 7.1 | 8 | 79 | 39 |
| B320072210 | 7.2 | 8 | 79 | 39 |
| B320073210 | 7.3 | 8 | 79 | 39 |
| B320074210 | 7.4 | 8 | 79 | 39 |
| B320075210 | 7.5 | 8 | 79 | 39 |
| B320076210 | 7.6 | 8 | 79 | 39 |
| B320077210 | 7.7 | 8 | 79 | 39 |
| B320078210 | 7.8 | 8 | 79 | 39 |
| B320079210 | 7.9 | 8 | 79 | 39 |
| B320080210 | 8 | 8 | 79 | 39 |
| B320081210 | 8.1 | 10 | 89 | 45 |
| B320082210 | 8.2 | 10 | 89 | 45 |
| B320083210 | 8.3 | 10 | 89 | 45 |
| B320084210 | 8.4 | 10 | 89 | 45 |
| B320085210 | 8.5 | 10 | 89 | 45 |
| B320086210 | 8.6 | 10 | 89 | 45 |
| B320087210 | 8.7 | 10 | 89 | 45 |
| B320088210 | 8.8 | 10 | 89 | 45 |
| B320089210 | 8.9 | 10 | 89 | 45 |
| B320090210 | 9 | 10 | 89 | 45 |
| B320091210 | 9.1 | 10 | 89 | 45 |
| B320092210 | 9.2 | 10 | 89 | 45 |
| B320093210 | 9.3 | 10 | 89 | 45 |
| B320094210 | 9.4 | 10 | 89 | 45 |
| B320095210 | 9.5 | 10 | 89 | 45 |
| B320096210 | 9.6 | 10 | 89 | 45 |
| B320097210 | 9.7 | 10 | 89 | 45 |
| B320098210 | 9.8 | 10 | 89 | 45 |
| B320099210 | 9.9 | 10 | 89 | 45 |
| B320100210 | 10 | 10 | 89 | 53 |
| B320101210 | 10.1 | 12 | 102 | 53 |
| B320102210 | 10.2 | 12 | 102 | 53 |
| B320103210 | 10.3 | 12 | 102 | 53 |
| B320104210 | 10.4 | 12 | 102 | 53 |
| B320105210 | 10.5 | 12 | 102 | 53 |
| B320106210 | 10.6 | 12 | 102 | 53 |
| B320107210 | 10.7 | 12 | 102 | 53 |
| B320108210 | 10.8 | 12 | 102 | 53 |
| B320109210 | 10.9 | 12 | 102 | 53 |
| B320110210 | 11 | 12 | 102 | 53 |
| B320111210 | 11.1 | 12 | 102 | 53 |
| B320112210 | 11.2 | 12 | 102 | 53 |
| B320113210 | 11.3 | 12 | 102 | 53 |
| B320114210 | 11.4 | 12 | 102 | 53 |
| B320115210 | 11.5 | 12 | 102 | 53 |
| B320116210 | 11.6 | 12 | 102 | 53 |
| B320117210 | 11.7 | 12 | 102 | 53 |
| B320118210 | 11.8 | 12 | 102 | 53 |
| B320119210 | 11.9 | 12 | 102 | 53 |
| B320120210 | 12 | 12 | 102 | 53 |
| B320125210 | 12.5 | 14 | 107 | 58 |
| B320127210 | 12.7 | 14 | 107 | 58 |
| B320130210 | 13 | 14 | 107 | 58 |
| B320135210 | 13.5 | 14 | 107 | 58 |
| B320140210 | 14 | 14 | 107 | 58 |
| B320145210 | 14.5 | 16 | 115 | 63 |
| B320150210 | 15 | 16 | 115 | 63 |
| B320155210 | 15.5 | 16 | 115 | 63 |
| B320160210 | 16 | 16 | 115 | 63 |
| B320165210 | 16.5 | 18 | 123 | 71 |
| B320170210 | 17 | 18 | 123 | 71 |
| B320175210 | 17.5 | 18 | 123 | 71 |
| B320180210 | 18 | 18 | 123 | 71 |
| B320185210 | 18.5 | 20 | 131 | 77 |
| B320190210 | 19 | 20 | 131 | 77 |
| B320195210 | 19.5 | 20 | 131 | 77 |
| B320200210 | 20 | 20 | 131 | 77 |

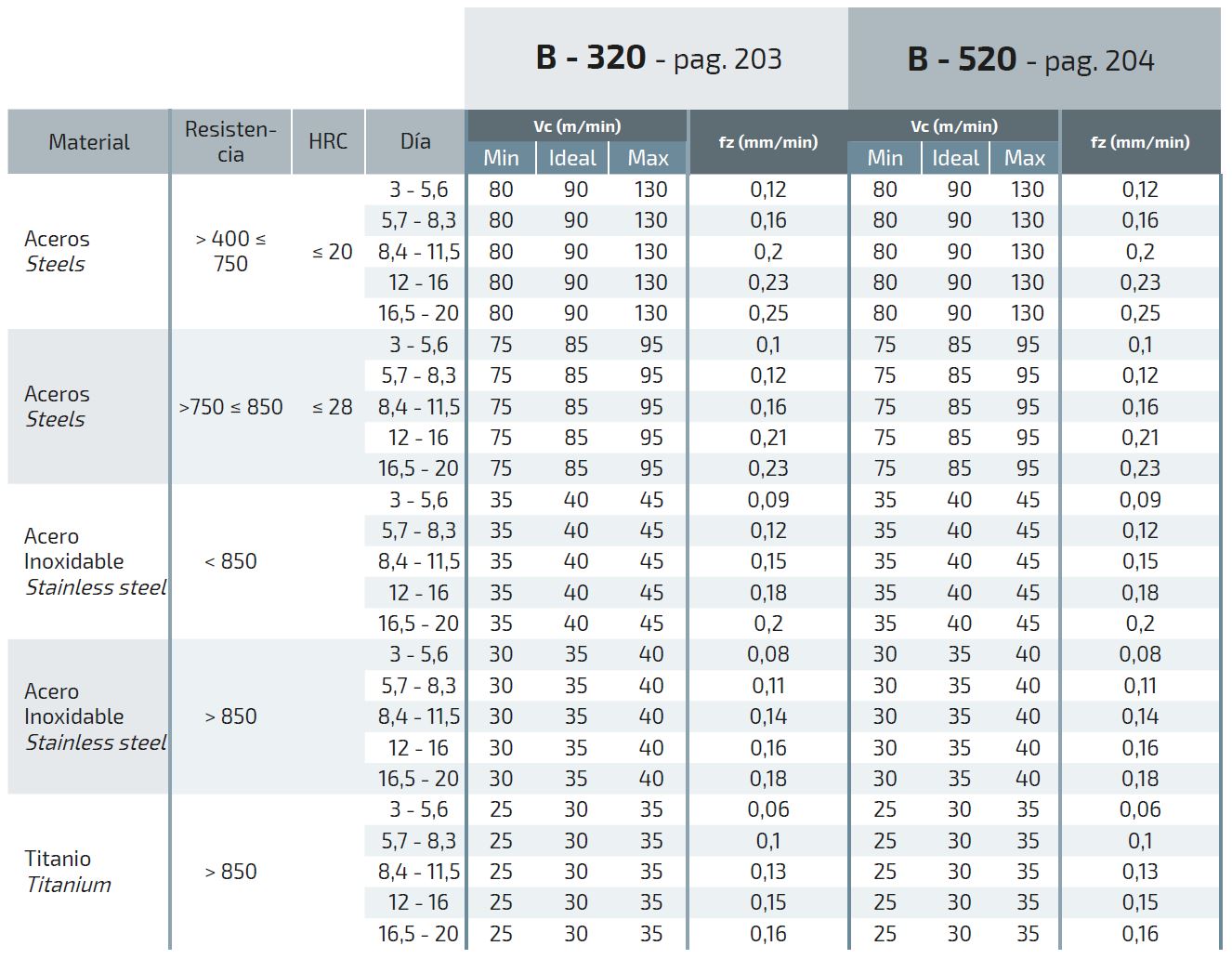

CONDICIONES DE CORTE:
