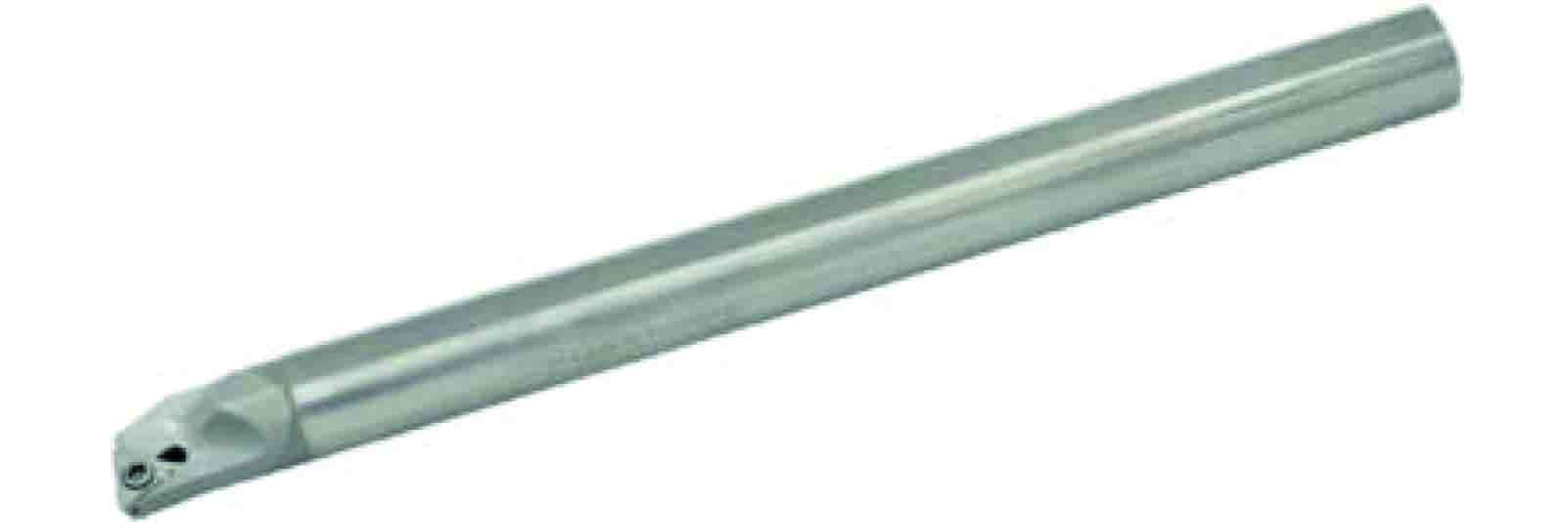

STUPR/L-A SOPORTE DE METAL DURO CON REFRIGERACIÓN EN EL CENTRO STFB(C)R/L-A
SOPORTE DE METAL DURO CON REFRIGERACIÓN EN EL CENTRO STFB(C)R/L-A
Disponibilidad: En Stock
REFERENCIAS DEL PRODUCTO:

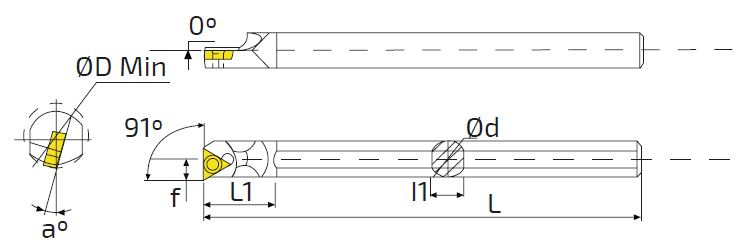

| Referencia | f | l1 | l | d | H | a | D | Plaquita |
|---|---|---|---|---|---|---|---|---|
| C08K-STUPR/L09-A | 5 | 7 | 125 | 8 | 20 | 13 | 8 | TP..0903 |
| C10K-STUPR/L09-A | 6.5 | 9 | 125 | 10 | 22 | 12 | 10 | TP..0903 |
| C10K-STUPR/L11-A | 6.5 | 9 | 125 | 10 | 22 | 12 | 10 | TP..1103 |
| C12M-STUPR/L11-A | 8 | 11 | 150 | 12 | 25 | 10 | 12 | TP..1103 |
| C12Q-STUPR/L11-A | 8 | 11 | 180 | 12 | 25 | 12 | 12 | TP..1103 |
| C16Q-STUPR/L11-A | 10 | 15 | 180 | 16 | 28 | 10 | 16 | TP..1103 |
| C16R-STUPR/L11-A | 10 | 15 | 200 | 16 | 28 | 10 | 16 | TP..1103 |
| C20R-STUPR/L16-A | 13 | 18 | 200 | 20 | 33 | 8 | 20 | TP..1603 |
| C20S-STUPR/L16-A | 13 | 18 | 250 | 20 | 33 | 8 | 20 | TP..1603 |
